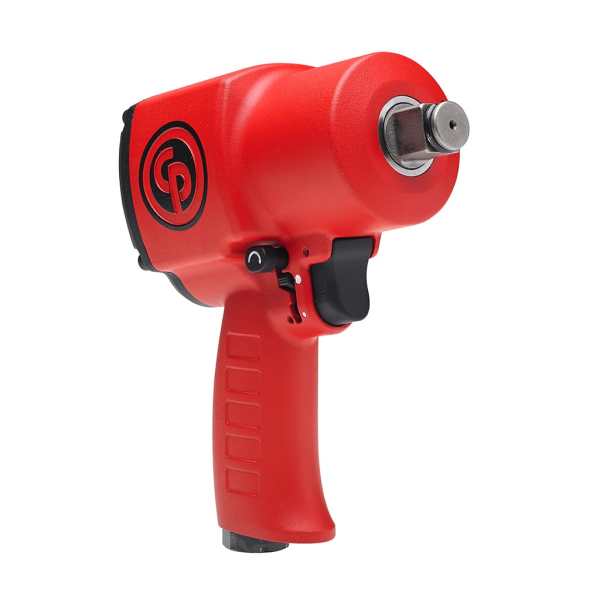

Chicago Pneumatic CP7762 3/4" STUBBY IMPACT WRENCH
Chicago Pneumatic CP7762 3/4" STUBBY IMPACT WRENCH
Chicago Pneumatic CP7762 3/4" STUBBY IMPACT WRENCH - Image 2

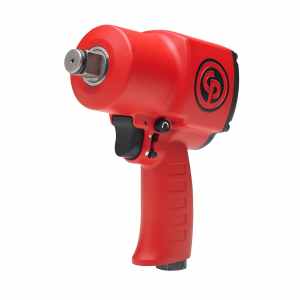

Chicago Pneumatic CP7762 3/4" STUBBY IMPACT WRENCH - Image 3
Chicago Pneumatic CP7762 3/4" STUBBY IMPACT WRENCH - Image 4
Chicago Pneumatic CP7762 3/4" STUBBY IMPACT WRENCH - Image 5
Chicago Pneumatic CP7762 3/4" STUBBY IMPACT WRENCH - Image 6

Chicago Pneumatic CP7762 3/4″ STUBBY IMPACT WRENCH

Original price was: $824.29.Current price is: $630.59.

CP7762 – Ultra Compact, Lightweight and Powerful

SKU: 8941077620 Categories: , Brand:

Description

CP7762

CP7762 – Ultra Compact, Lightweight and Powerful

Benefits

  • ULTRA Compact
  • Lightweight
  • Powerful
  • Operator Comfort & Easy to handle
  • Hight Durability
  • Optimum Handle Design

    • Features

  • 6.2 in / 158.7 mm length for restricted working areas
  • 6.6 lbs. / 3.0 kg for less operator fatigue
  • 1050 ft.lbs / 1420 Nm in reverse for high productivity
  • Side2Side forward and reverse system
  • Full teasing trigger
  • One hand Forward & Reverse speed regulator button
  • Steel motor
  • Twin Hammer mechanism
  • Aluminum housing
  • Ergonomic P-handle with full teasing trigger
  • Perfect weight distribution

    •
    Model CP7762
    Part number 8941077620
    Length 158 mm 6.2″
    Length 6.2″ 158 mm
    Net weight 2.9 kg 6.38 lb
    Net weight 6.38 lb 2.9 kg
    Side to center 42 mm 1.65″
    Side to center 1.65″ 42 mm
    Average air consumption 8.78 cfm
    Average air consumption 4.1 l/s 8.78 cfm
    Actual air consumption 34.75 cfm
    Actual air consumption 16.4 l/s 34.75 cfm
    Free speed air consumption 57 cfm
    Free speed air consumption 26.7 l/s 57 cfm
    Air inlet thread size 3/8 “
    Min. hose size 13 mm 1/2″
    Min. hose size 1/2″ 13 mm
    Sound pressure 92.8 db(A)
    Sound Power 103.8 db(A)
    Vibration ISO ISO-28927-2
    Vibration 10.7 m/s²
    Vibration uncertainty (K) 2.8 m/s²
    Handle type Pistol
    Square drive 3/4″
    Working Torque Range (fwd) 200 – 900 Nm 150 – 670
    Working Torque Range (fwd) 150 – 670 ft.lbs 200 – 900
    Maximum Torque (reverse) 1420 Nm 1050 ft.lbs
    Maximum Torque (reverse) 1050 ft.lbs 1420 Nm
    Free speed 4850 rpm
    Blows per minute 960
    Power/weight ratio 489.7 Nm/kg 160 ft.lb/lb
    Power/weight ratio 160 ft.lb/lb 489.7 Nm/kg
    Socket retainer Friction ring
    Clutch type Twin hammer
    European Standards EN ISO 11148-6:2013
