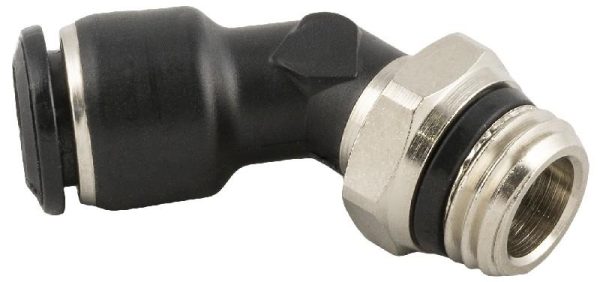

AIGNEP 45 DEG SWIVEL ELBOW- 55170

Download Catalog









Code
USA REF
Tube

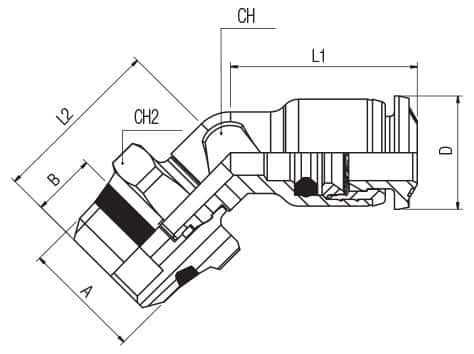

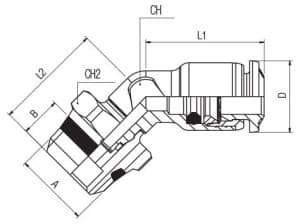

A
B
L1
L2
CH
CH2
D
Bag






55170 00 001
55170-4-1/8
5/32 (4)
1/8
0.217 (5.5)
0.492 (12.5)
0.650 (16.5)
0.276 (7)
0.512 (13)
0.394 (10)
10




55170 00 004
55170-6-1/8
6
1/8
0.217 (5.5)
0.807 (20.5)
0.689 (17.5)
0.354 (9)
0.512 (13)
0.472 (12)
10




55170 00 005
55170-6-1/4
6
1/4
0.276 (7)
0.807 (20.5)
0.744 (18.9)
0.354 (9)
0.591 (15)
0.472 (12)
10




55170 00 008
55170-8-1/8
5/16 (8)
1/8
0.217 (5.5)
0.866 (22)
0.728 (18.5)
0.394 (10)
0.512 (13)
0.551 (14)
10




55170 00 009
55170-8-1/4
5/16 (8)
1/4
0.276 (7)
0.866 (22)
0.787 (20)
0.394 (10)
0.591 (15)
0.551 (14)
10




55170 00 010
55170-8-3/8
5/16 (8)
3/8
0.295 (7.5)
0.866 (22)
0.807 (20.5)
0.394 (10)
0.669 (17)
0.551 (14)
10




55170 00 012
55170-10-1/4
10
1/4
0.276 (7)
1.043 (26.5)
0.858 (21.8)
0.512 (13)
0.630 (16)
0.669 (17)
10




55170 00 013
55170-10-3/8
10
3/8
0.295 (7.5)
1.043 (26.5)
0.858 (21.8)
0.512 (13)
0.669 (17)
0.669 (17)
10




55170 00 014
55170-10-1/2
10
1/2
0.354 (9)
1.043 (26.5)
0.957 (24.3)
0.512 (13)
0.827 (21)
0.669 (17)
10




55170 00 015
55170-12-1/4
12
1/4
0.276 (7)
1.181 (30)
0.909 (23.1)
0.630 (16)
0.630 (16)
0.787 (20)
10




55170 00 016
55170-12-3/8
12
3/8
0.295 (7.5)
1.181 (30)
0.909 (23.1)
0.630 (16)
0.669 (17)
0.787 (20)
10




55170 00 017
55170-12-1/2
12
1/2
0.354 (9)
1.181 (30)
1.008 (25.6)
0.630 (16)
0.827 (21)
0.787 (20)
10
