Aignep 5 Way Aluminum Manifold – 50900N
Price range: $18.77 through $32.22
- Description
- Additional information
Description
AIGNEP 50900N 5 WAYS ALUMINIUM MANIFOLD

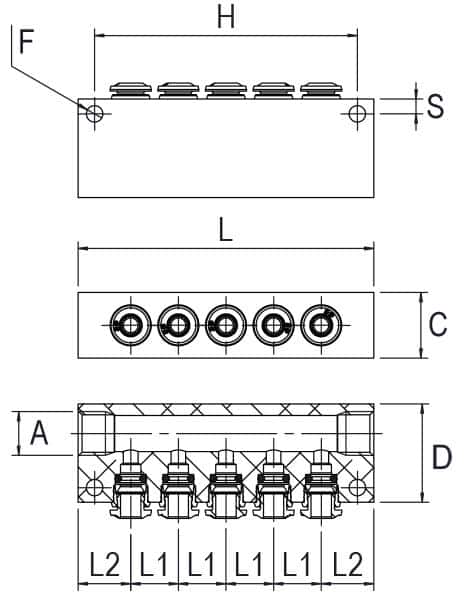

| Code | USA REF | Tube | A | H | F | S | C | D | L | L1 | L2 | Bag |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50900 00 N01 | 50900N-4-1/8 | 5/32 (4) | 1/8 | 2.598 (66) | 0.197 (5) | 0.177 (4.5) | 0.591 (15) | 0.984 (25) | 2.953 (75) | 0.472 (12) | 0.531 (13.5) | 5 |
| 50900 00 N02 | 50900N-6-1/8 | 6 | 1/8 | 3.150 (80) | 0.197 (5) | 0.177 (4.5) | 0.591 (15) | 0.984 (25) | 3.543 (90) | 0.571 (14.5) | 0.630 (16) | 5 |
| 50900 00 N03 | 50900N-6-1/4 | 6 | 1/4 | 3.150 (80) | 0.197 (5) | 0.177 (4.5) | 0.787 (20) | 1.181 (30) | 3.543 (90) | 0.571 (14.5) | 0.630 (16) | 5 |
| 50900 00 N04 | 50900N-8-1/4 | 5/16 (8) | 1/4 | 3.543 (90) | 0.197 (5) | 0.177 (4.5) | 0.787 (20) | 1.181 (30) | 3.937 (100) | 0.630 (16) | 0.709 (18) | 5 |
Additional information
| Tube Push-In Fittings | 3mm, 5/32 (4mm), 5mm, 5/16 (8mm), 6mm, 10mm, 12mm, 14mm, 16mm |
|---|---|
| Brand | |
| Output Push-In Fittings | |
| Model - Series |
