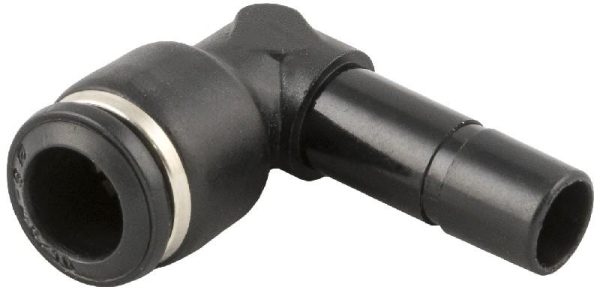

Aignep Composite Elbow Plug In- 55140
Price range: $1.05 through $1.79
- Description
- Additional information
Description
AIGNEP COMPOSITE ELBOW PLUG IN- 55140

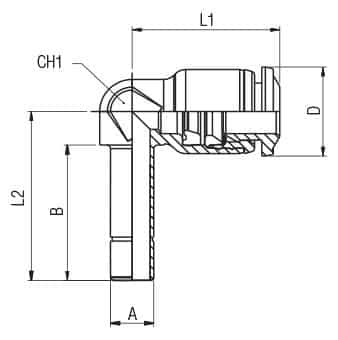

| Code | USA REF | Tube | A | B | L1 | L2 | CH1 | D | Bag |
|---|---|---|---|---|---|---|---|---|---|
| 55140 00 001 | 55140-4 | 5/32 (4) | 5/32 (4) | .669 (17) | .650 (16,5) | .819 (20,8) | .276 (7) | .394 (10) | 10 |
| 55140 00 002 | 55140-4-6 | 5/32 (4) | 6 | .748 (19) | .650 (16,5) | .898 (22,8) | .276 (7) | .394 (10) | 10 |
| 55140 00 005 | 55140-6 | 6 | 6 | .748 (19) | .807 (20,5) | .933 (23,7) | .354 (9) | .492 (12,5) | 10 |
| 55140 00 006 | 55140-6-4 | 6 | 5/32 (4) | .669 (17) | .807 (20,5) | .854 (21,7) | .354 (9) | .492 (12,5) | 10 |
| 55140 00 012 | 55140-6-8 | 6 | 5/16 (8) | .787 (20) | .886 (22,5) | 1.024 (26) | .394 (10) | .551 (14) | 10 |
| 55140 00 007 | 55140-8 | 5/16 (8) | 5/16 (8) | .787 (20) | .866 (22) | 1.024 (26) | .394 (10) | .551 (14) | 10 |
| 55140 00 008 | 55140-8-10 | 5/16 (8) | 10 | .858 (21,8) | .866 (22) | 1.087 (27,6) | .394 (10) | .551 (14) | 10 |
| 55140 00 009 | 55140-10 | 10 | 10 | .886 (22,5) | 1.043 (26,5) | 1.181 (30) | .512 (13) | .669 (17) | 10 |
| 55140 00 010 | 55140-10-12 | 10 | 12 | .972 (24,7) | 1.043 (26,5) | 1.268 (32,2) | .512 (13) | .669 (17) | 10 |
| 55140 00 011 | 55140-12 | 12 | 12 | 1.004 (25,5) | 1.181 (30) | 1.319 (33,5) | .630 (16) | .787 (20) | 10 |
55000 METRIC Serie
