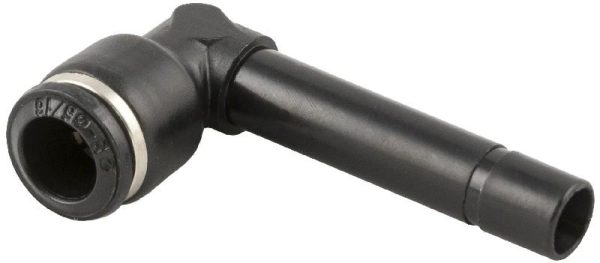

Aignep Composite Extended Elbow Plug In- 55150
Price range: $1.05 through $1.82
- Description
- Additional information
Description
AIGNEP COMPOSITE EXTENDED ELBOW PLUG IN- 55150

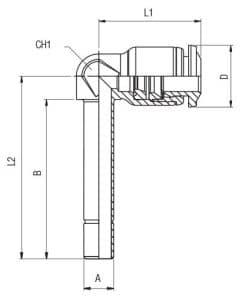

| Code | USA REF | Tube | A | B | L1 | L2 | CH1 | D | Bag |
|---|---|---|---|---|---|---|---|---|---|
| 55150 00 001 | 55150-4 | 5/32 (4) | 5/32 (4) | 1.102 (28) | 0.650 (16.5) | 1.252 (31.8) | 0.276 (7) | 0.394 (10) | 10 |
| 55150 00 002 | 55150-4-6 | 5/32 (4) | 6 | 1.201 (30.5) | 0.650 (16.5) | 1.350 (34.3) | 0.276 (7) | 0.394 (10) | 10 |
| 55150 00 005 | 55150-6 | 6 | 6 | 1.272 (32.3) | 0.807 (20.5) | 1.457 (37) | 0.354 (9) | 0.492 (12.5) | 10 |
| 55150 00 006 | 55150-6-4 | 6 | 5/32 (4) | 1.181 (30) | 0.807 (20.5) | 1.366 (34.7) | 0.354 (9) | 0.492 (12.5) | 10 |
| 55150 00 007 | 55150-8 | 5/16 (8) | 5/16 (8) | 1.417 (36) | 0.866 (22) | 1.654 (42) | 0.394 (10) | 0.551 (14) | 10 |
| 55150 00 008 | 55150-8-10 | 5/16 (8) | 10 | 1.476 (37.5) | 0.866 (22) | 1.697 (43.1) | 0.394 (10) | 0.551 (14) | 10 |
| 55150 00 009 | 55150-10 | 10 | 10 | 1.606 (40.8) | 1.043 (26.5) | 1.902 (48.3) | 0.512 (13) | 0.669 (17) | 10 |
| 55150 00 010 | 55150-10-12 | 10 | 12 | 1.701 (43.2) | 1.043 (26.5) | 1.996 (50.7) | 0.512 (13) | 0.669 (17) | 10 |
| 55150 00 011 | 55150-12 | 12 | 12 | 1.850 (47) | 1.220 (31) | 2.165 (55) | 0.630 (16) | 0.787 (20) | 10 |
55000 – METRIC Series
