AIGNEP 55115 SWIVEL ELBOW – BSPP

Download Catalog

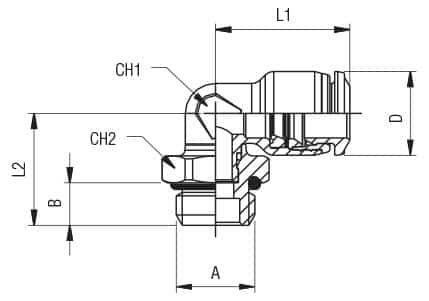

Code USA REF Tube A B L1 L2 CH1 CH2 D Bag
55116 00 001 55115-4-M3X0,5 4 M3X0,5 0.118 (3) 0.650 (16.5) 0.472 (12) 0.276 (7) 0.354 (9) 0.394 (10) 10
55116 00 002 55115-4-M5 5/32 (4) M5 .141 (3.6) 0.650 (16.5) 0.543 (13.8) 0.276 (7) 0.354 (9) 0.394 (10) 10
55116 00 003 55115-4-M7X1 5/32 (4) M7X1 .141 (3.6) 0.650 (16.5) 0.567 (14.4) 0.276 (7) 0.354 (9) 0.394 (10) 10
55116 00 004 55115-4-1/8 5/32 (4) 1/8 .212 (5.4) 0.650 (16.5) 0.591 (15) 0.276 (7) 0.512 (13) 0.394 (10) 10
55116 00 005 55115-4-1/4 5/32 (4) 1/4 .279 (7.1) 0.650 (16.5) 0.654 (16.6) 0.354 (9) 0.630 (16) 0.394 (10) 10
55116 00 006 55115-4-3/8 5/32 (4) 3/8 .141 (3.6) 0.650 (16.5) 0.709 (18) 0.276 (7) 0.787 (20) 0.394 (10) 10
55116 00 007 55115-5-M5 5 M5 .212 (5.4) 0.787 (20) 0.579 (14.7) 0.354 (9) 0.354 (9) 0.472 (12) 10
55116 00 009 55115-5-1/8 5 1/8 .141 (3.6) 0.787 (20) 0.622 (15.8) 0.354 (9) 0.512 (13) 0.472 (12) 10
55116 00 011 55115-6-M5 6 M5 .212 (5.4) 0.807 (20.5) 0.579 (14.7) 0.354 (9) 0.354 (9) 0.472 (12) 10
55116 00 029 55115-6-M7 6 M7 .279 (7.1) 0.807 (20.5) 0.610 (15.5) 0.354 (9) 0.354 (9) 0.492 (12.5) 10
55116 00 030 55115-6-M10x1 6 M10x1 .318 (8.1) 0.807 (20.5) 0.610 (15.5) 0.354 (9) 0.512 (13) 0.492 (12.5) 10
55116 00 031 55115-6-M12x1 6 M12x1 .212 (5.4) 0.807 (20.5) 0.709 (18) 0.354 (9) 0.630 (16) 0.492 (12.5) 10
55116 00 013 55115-6-1/8 6 1/8 .279 (7.1) 0.807 (20.5) 0.622 (15.8) 0.354 (9) 0.512 (13) 0.472 (12) 10
55116 00 014 55115-6-1/4 6 1/4 .318 (8.1) 0.807 (20.5) 0.689 (17.5) 0.354 (9) 0.630 (16) 0.472 (12) 10
55116 00 015 55115-6-3/8 6 3/8 .377 (9.6) 0.807 (20.5) 0.748 (19) 0.354 (9) 0.787 (20) 0.472 (12) 10
55116 00 016 55115-6-1/2 6 1/2 .279 (7.1) 0.807 (20.5) 0.827 (21) 0.354 (9) 0.984 (25) 0.472 (12) 10
55116 00 032 55115-8-M10x1 8 M10x1 .318 (8.1) 0.886 (22.5) 0.768 (19.5) 0.394 (10) 0.512 (13) 0.551 (14) 10
55116 00 033 55115-8-M12x1 8 M12x1 .377 (9.6) 0.886 (22.5) 0.748 (19) 0.394 (10) 0.630 (16) 0.551 (14) 10
55116 00 017 55115-8-1/8 5/16 (8) 1/8 .279 (7.1) 0.866 (22) 0.764 (19.4) 0.394 (10) 0.512 (13) 0.551 (14) 10
55116 00 018 55115-8-1/4 5/16 (8) 1/4 .318 (8.1) 0.866 (22) 0.736 (18.7) 0.394 (10) 0.630 (16) 0.551 (14) 10
55116 00 019 55115-8-3/8 5/16 (8) 3/8 .377 (9.6) 0.866 (22) 0.791 (20.1) 0.394 (10) 0.787 (20) 0.551 (14) 10
55116 00 020 55115-8-1/2 5/16 (8) 1/2 .318 (8.1) 0.866 (22) 0.870 (22.1) 0.394 (10) 0.984 (25) 0.551 (14) 10
55116 00 034 55115-10-1/8 10 1/8 .377 (9.6) 1.043 (26.5) 0.827 (21) 0.512 (13) 0.630 (16) 0.669 (17) 10
55116 00 021 55115-10-1/4 10 1/4 .318 (8.1) 1.043 (26.5) 0.898 (22.8) 0.512 (13) 0.630 (16) 0.669 (17) 10
55116 00 022 55115-10-3/8 10 3/8 .377 (9.6) 1.043 (26.5) 0.878 (22.3) 0.512 (13) 0.787 (20) 0.669 (17) 10
55116 00 023 55115-10-1/2 10 1/2 .141 (3.6) 1.043 (26.5) 0.937 (23.8) 0.512 (13) 0.984 (25) 0.669 (17) 10
55116 00 024 55115-12-1/4 12 1/4 .212 (5.4) 1.181 (30) 0.949 (24.1) 0.630 (16) 0.630 (16) 0.787 (20) 10
55116 00 025 55115-12-3/8 12 3/8 .212 (5.4) 1.181 (30) 0.929 (23.6) 0.630 (16) 0.787 (20) 0.787 (20) 10
55116 00 026 55115-12-1/2 12 1/2 .287 (7.3) 1.181 (30) 0.988 (25.1) 0.630 (16) 0.984 (25) 0.787 (20) 10
55116 00 027 55115-14-3/8 14 3/8 .287 (7.3) 1.220 (31) 1.106 (28.1) 0.709 (18) 0.787 (20) 0.827 (21) 10
55116 00 028 55115-14-1/2 14 1/2 .287 (7.3) 1.220 (31) 1.028 (26.1) 0.709 (18) 0.984 (25) 0.827 (21) 10
55116 00 035 55115-16-3/8 16 3/8 .287 (7.3) 1.291 (32.8) 1.331 (33.8) 0.787 (20) 0.866 (22) 0.945 (24) 10
55116 00 036 55115-16-1/2 16 1/2 .378 (9.6) 1.291 (32.8) 1.409 (35.8) 0.787 (20) 0.984 (25) 0.945 (24) 10

55000 METRIC Series
