Aignep Composite Union Elbow – 55130
Price range: $1.68 through $3.15
- Description
- Additional information
Description

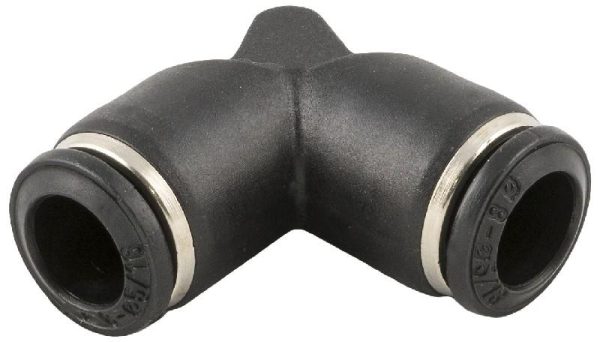

AIGNEP COMPOSITE UNION ELBOW – 55130

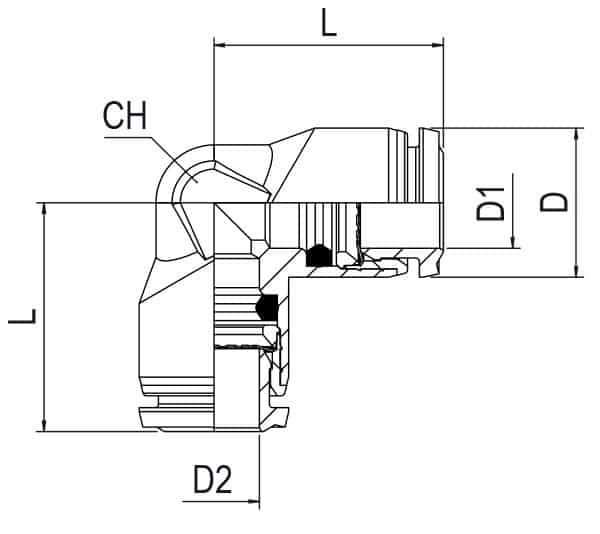

| Code | USA REF | D1 | D2 | L | D | CH | Bag |
|---|---|---|---|---|---|---|---|
| 55130 00 002 | 55130-4 | 5/32 (4) | 0.650 (16.5) | 0.394 (10) | 0.354 (9) | 10 | |
| 55130 00 003 | 55130-5 | 5 | 0.787 (20) | 0.472 (12) | 0.433 (11) | 10 | |
| 55130 00 004 | 55130-6 | 6 | 0.807 (20.5) | 0.472 (12) | 0.433 (11) | 10 | |
| 55130 00 009 | 55130-8-6 | 5/16 (8) | 6 | 0.886 (22.5) | 0.551 (14) | 0.512 (13) | 10 |
| 55130 00 005 | 55130-8 | 5/16 (8) | 0.866 (22) | 0.551 (14) | 0.512 (13) | 10 | |
| 55130 00 012 | 55130-10-6 | 10 | 6 | 1.024 (26) | 0.669 (17) | 0.630 (16) | 10 |
| 55130 00 010 | 55130-10-8 | 10 | 5/16 (8) | 1.024 (26) | 0.669 (17) | 0.630 (16) | 10 |
| 55130 00 006 | 55130-10 | 10 | 1.043 (26.5) | 0.669 (17) | 0.630 (16) | 10 | |
| 55130 00 011 | 55130-12-10 | 12 | 10 | 1.201 (30.5) | 0.787 (20) | 0.748 (19) | 10 |
| 55130 00 007 | 55130-12 | 12 | 1.181 (30) | 0.787 (20) | 0.748 (19) | 10 | |
| 55130 00 008 | 55130-14 | 14 | 1.201 (30.5) | 0.827 (21) | 0.787 (20) | 10 | |
| 55130 00 013 | 55130-16 | 16 | 1.291 (32.8) | 0.945 (24) | 0.787 (20) | 10 |
55000 METRIC Series
