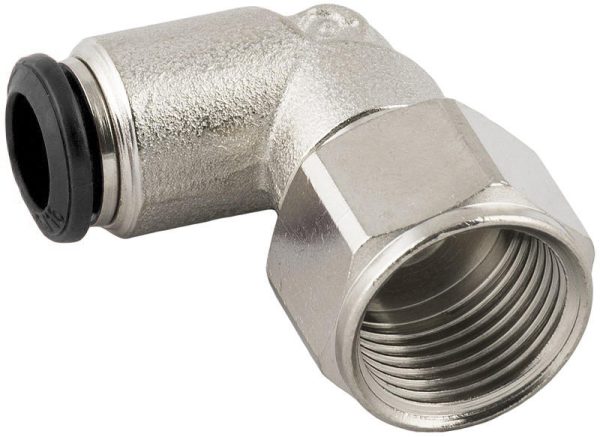

Aignep Female Elbow – BSPP 50105N

Price range: $3.99 through $5.15

SKU: 50105N Category: Brand:

Description

AIGNEP 50105N FEMALE ELBOW – BSPP

Download Catalog

Code USA REF Tube A B L1 L2 CH1 CH2 D Bag
50106 00 N01 50105N-4-1/8 5/32 (4) 1/8 0.335 (8.5) 0.709 (18) 0.748 (19) 0.354 (9) 0.512 (13) 0.394 (10) 10
50106 00 N02 50105N-4-1/4 5/32 (4) 1/4 0.433 (11) 0.709 (18) 0.846 (21.5) 0.354 (9) 0.630 (16) 0.394 (10) 10
50106 00 N03 50105N-6-1/8 6 1/8 0.335 (8.5) 0.827 (21) 0.807 (20.5) 0.433 (11) 0.512 (13) 0.492 (12.5) 10
50106 00 N04 50105N-6-1/4 6 1/4 0.433 (11) 0.827 (21) 0.906 (23) 0.433 (11) 0.630 (16) 0.492 (12.5) 10
50106 00 N05 50105N-8-1/8 5/16 (8) 1/8 0.335 (8.5) 0.886 (22.5) 0.866 (22) 0.472 (12) 0.512 (13) 0.571 (14.5) 10
50106 00 N06 50105N-8-1/4 5/16 (8) 1/4 0.433 (11) 0.886 (22.5) 0.965 (24.5) 0.472 (12) 0.630 (16) 0.571 (14.5) 10
50106 00 N07 50105N-8-3/8 5/16 (8) 3/8 0.472 (12) 0.886 (22.5) 0.965 (24.5) 0.472 (12) 0.512 (13) 0.571 (14.5) 10
50106 00 N09 50105N-10-1/4 10 1/4 0.433 (11) 1.043 (26.5) 0.984 (25) 0.551 (14) 0.748 (19) 0.669 (17) 10
50106 00 N10 50105N-10-3/8 10 3/8 0.472 (12) 1.043 (26.5) 1.102 (28) 0.551 (14) 0.748 (19) 0.669 (17) 10
50106 00 N11 50105N-12-1/2 12 1/2 0.591 (15) 1.240 (31.5) 1.358 (34.5) 0.630 (16) 0.945 (24) 0.787 (20) 10

Additional information

Tube Push-In Fittings

, , , , , , , ,

Brand

Output Push-In Fittings

,

Model - Series
