Aignep Male Elbow – Swift Fit 50110N

Price range: $3.29 through $8.41

SKU: 50110N Category: Brand:

Description

AIGNEP 50110N SWIVEL ELBOW – SWIFTFIT

Download Catalog

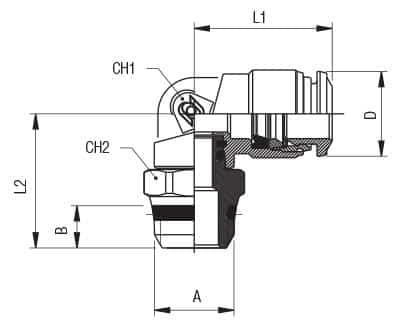

Code USA REF Tube A B L1 L2 CH1 CH2 D Bag
50111 00 N01 50110N-4-1/8 5/32 (4) 1/8 0.217 (5.5) 0.709 (18) 0.768 (19.5) 0.354 (9) 0.512 (13) 0.394 (10) 10
50111 00 N02 50110N-4-1/4 5/32 (4) 1/4 0.276 (7) 0.709 (18) 0.827 (21) 0.354 (9) 0.591 (15) 0.394 (10) 10
50111 00 N03 50110N-5-1/8 5 1/8 0.217 (5.5) 0.787 (20) 0.846 (21.5) 0.433 (11) 0.512 (13) 0.492 (12.5) 10
50111 00 N04 50110N-6-1/8 6 1/8 0.217 (5.5) 0.827 (21) 0.846 (21.5) 0.433 (11) 0.512 (13) 0.492 (12.5) 10
50111 00 N05 50110N-6-1/4 6 1/4 0.276 (7) 0.827 (21) 0.906 (23) 0.433 (11) 0.591 (15) 0.492 (12.5) 10
50111 00 N06 50110N-8-1/8 5/16 (8) 1/8 0.217 (5.5) 0.886 (22.5) 0.945 (24) 0.472 (12) 0.512 (13) 0.571 (14.5) 10
50111 00 N07 50110N-8-1/4 5/16 (8) 1/4 0.276 (7) 0.886 (22.5) 0.945 (24) 0.472 (12) 0.591 (15) 0.571 (14.5) 10
50111 00 N08 50110N-8-3/8 5/16 (8) 3/8 0.295 (7.5) 0.886 (22.5) 0.965 (24.5) 0.472 (12) 0.669 (17) 0.571 (14.5) 10
50111 00 N09 50110N-8-1/2 5/16 (8) 1/2 0.354 (9) 0.886 (22.5) 1.063 (27) 0.472 (12) 0.827 (21) 0.571 (14.5) 10
50111 00 N10 50110N-10-1/4 10 1/4 0.276 (7) 1.043 (26.5) 1.043 (26.5) 0.551 (14) 0.630 (16) 0.689 (17.5) 10
50111 00 N11 50110N-10-3/8 10 3/8 0.295 (7.5) 1.043 (26.5) 0.965 (24.5) 0.551 (14) 0.669 (17) 0.689 (17.5) 10
50111 00 N12 50110N-10-1/2 10 1/2 0.354 (9) 1.043 (26.5) 1.063 (27) 0.551 (14) 0.827 (21) 0.689 (17.5) 10
50111 00 N13 50110N-12-3/8 12 3/8 0.295 (7.5) 1.240 (31.5) 1.043 (26.5) 0.630 (16) 0.787 (20) 0.846 (21.5) 10
50111 00 N14 50110N-12-1/2 12 1/2 0.354 (9) 1.240 (31.5) 1.142 (29) 0.630 (16) 0.827 (21) 0.846 (21.5) 10
50111 00 N15 50110N-14-3/8 14 3/8 0.295 (7.5) 1.240 (31.5) 1.063 (27) 0.630 (16) 0.787 (20) 0.846 (21.5) 10
50111 00 N16 50110N-14-1/2 14 1/2 0.354 (9) 1.240 (31.5) 1.161 (29.5) 0.630 (16) 0.827 (21) 0.846 (21.5) 10
50111 00 N17 50110N-16-3/8 16 3/8 0.295 (7.5) 1.299 (33) 1.634 (41.5) 0.748 (19) 0.984 (25) 0.925 (23.5) 10
50111 00 N18 50110N-16-1/2 16 1/2 0.354 (9) 1.299 (33) 1.693 (43) 0.748 (19) 0.984 (25) 0.925 (23.5) 10

Additional information

Tube Push-In Fittings

, , , , , , , ,

Brand

Output Push-In Fittings

, , ,
