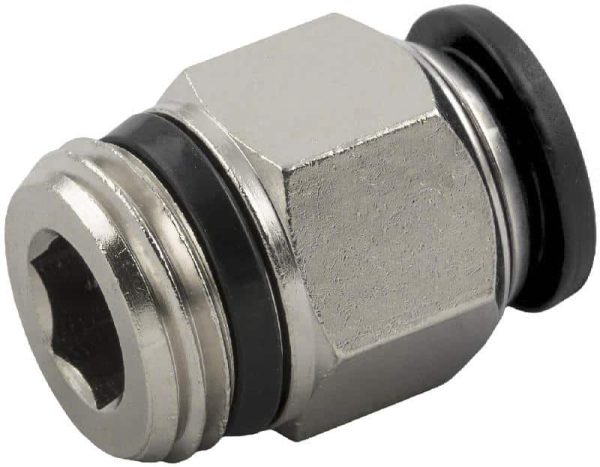

Aignep Straight Male Swift Fit 50000N - Image 1

Aignep Straight Male Swift Fit 50000N

Price range: $1.61 through $4.59

SKU: 50000N Category: Brand:

Description

AIGNEP 50000N STRAIGHT MALE – SWIFTFIT

Download Catalog

Code USA REF Tube A B L CH1 CH2 Bag
55000 00 001 50000N-4-1/8 5/32 (4) 1/8 0.217 (5.5) 0.709 (18) 0.433 (11) 0.118 (3) 10
55000 00 013 50000N-4-1/4 5/32 (4) 1/4 0.276 (7) 0.748 (19) 0.551 (14) 0.118 (3) 10
55000 00 002 50000N-5-1/8 5 1/8 0.217 (5.5) 0.787 (20) 0.433 (11) 0.157 (4) 10
55000 00 003 50000N-5-1/4 5 1/4 0.276 (7) 0.787 (20) 0.551 (14) 0.157 (4) 10
55000 00 004 50000N-6-1/8 6 1/8 0.217 (5.5) 0.846 (21.5) 0.512 (13) 0.157 (4) 10
55000 00 005 50000N-6-1/4 6 1/4 0.276 (7) 0.827 (21) 0.551 (14) 0.157 (4) 10
55000 00 014 50000N-6-3/8 6 3/8 0.295 (7.5) 0.906 (23) 0.669 (17) 0.157 (4) 10
55000 00 015 50000N-6-1/2 6 1/2 0.354 (9) 0.925 (23.5) 0.827 (21) 0.157 (4) 10
55000 00 006 50000N-8-1/8 5/16 (8) 1/8 0.217 (5.5) 0.965 (24.5) 0.551 (14) 0.197 (5) 10
55000 00 007 50000N-8-1/4 5/16 (8) 1/4 0.276 (7) 0.866 (22) 0.551 (14) 0.236 (6) 10
55000 00 008 50000N-8-3/8 5/16 (8) 3/8 0.295 (7.5) 0.906 (23) 0.669 (17) 0.236 (6) 10
55000 00 016 50000N-8-1/2 5/16 (8) 1/2 0.354 (9) 0.925 (23.5) 0.827 (21) 0.236 (6) 10
55000 00 009 50000N-10-1/4 10 1/4 0.276 (7) 1.102 (28) 0.669 (17) 0.276 (7) 10
55000 00 010 50000N-10-3/8 10 3/8 0.295 (7.5) 1.004 (25.5) 0.669 (17) 0.315 (8) 10
55000 00 017 50000N-10-1/2 10 1/2 0.354 (9) 1.024 (26) 0.827 (21) 0.315 (8) 10
55000 00 011 50000N-12-1/4 12 1/4 0.276 (7) 1.240 (31.5) 0.787 (20) 0.276 (7) 10
55000 00 012 50000N-12-3/8 12 3/8 0.295 (7.5) 1.161 (29.5) 0.787 (20) 0.354 (9) 10
55000 00 018 50000N-12-1/2 12 1/2 0.354 (9) 1.240 (31.5) 0.827 (21) 0.394 (10) 10
55000 00 019 50000N-14-3/8 14 3/8 0.295 (7.5) 1.280 (32.5) 0.827 (21) 0.354 (9) 10
55000 00 020 50000N-14-1/2 14 1/2 0.354 (9) 1.240 (31.5) 0.827 (21) 0.394 (10) 10
55000 00 021 50000N-16-3/8 16 3/8 0.295 (7.5) 1.378 (35) 0.906 (23) 0.394 (10) 10
55000 00 022 50000N-16-1/2 16 1/2 0.354 (9) 1.378 (35) 0.984 (25) 0.472 (12) 10

Additional information

Tube Push-In Fittings

, , , , , , ,

Brand

Output Push-In Fittings

, , ,

Model - Series
