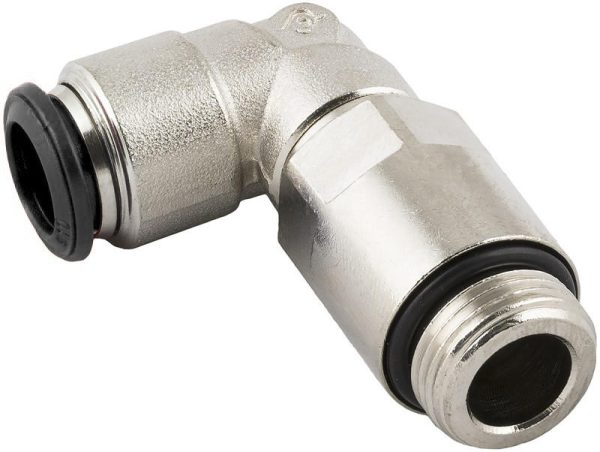

Aignep Swivel Male Extended Elbow – BSPP 50125N

Price range: $3.99 through $6.76

SKU: 50125N Category: Brand:

Description

AIGNEP 50125N SWIVEL EXTENDED ELBOW – BSPP

Download Catalog

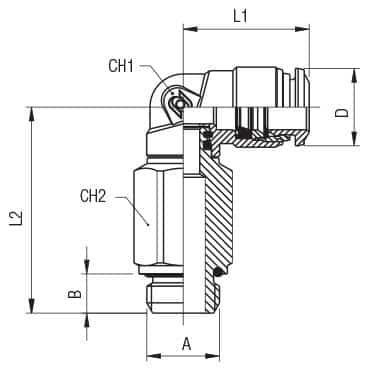

Code USA REF Tube A B L1 L2 CH1 CH2 D Bag
50126 00 N01 50125N-4-1/8 5/32 (4) 1/8 0.217 (5.5) 0.709 (18) 1.181 (30) 0.354 (9) 0.472 (12) 0.394 (10) 10
50126 00 N02 50125N-4-1/4 5/32 (4) 1/4 0.276 (7) 0.709 (18) 1.260 (32) 0.354 (9) 0.591 (15) 0.394 (10) 10
50126 00 N03 50125N-5-1/8 5 1/8 0.217 (5.5) 0.787 (20) 1.358 (34.5) 0.433 (11) 0.472 (12) 0.492 (12.5) 10
50126 00 N04 50125N-6-1/8 6 1/8 0.217 (5.5) 0.827 (21) 1.358 (34.5) 0.433 (11) 0.472 (12) 0.492 (12.5) 10
50126 00 N05 50125N-6-1/4 6 1/4 0.276 (7) 0.827 (21) 1.417 (36) 0.433 (11) 0.591 (15) 0.492 (12.5) 10
50126 00 N06 50125N-8-1/8 5/16 (8) 1/8 0.197 (5) 0.906 (23) 1.535 (39) 0.472 (12) 0.472 (12) 0.571 (14.5) 10
50126 00 N07 50125N-8-1/4 5/16 (8) 1/4 0.276 (7) 0.886 (22.5) 1.555 (39.5) 0.472 (12) 0.591 (15) 0.571 (14.5) 10
50126 00 N08 50125N-8-3/8 5/16 (8) 3/8 0.315 (8) 0.886 (22.5) 1.634 (41.5) 0.472 (12) 0.709 (18) 0.571 (14.5) 10
50126 00 N09 50125N-10-1/4 10 1/4 0.276 (7) 1.043 (26.5) 1.772 (45) 0.551 (14) 0.630 (16) 0.689 (17.5) 10
50126 00 N10 50125N-10-3/8 10 3/8 0.315 (8) 1.043 (26.5) 1.752 (44.5) 0.551 (14) 0.709 (18) 0.689 (17.5) 10

Additional information

Tube Push-In Fittings

, , , , , , , ,

Brand

Output Push-In Fittings

, ,

Model - Series
