Aignep Swivel Male Extended Elbow – Swift Fit 50120N
Price range: $3.87 through $6.41
- Description
- Additional information
Description
AIGNEP 50120N SWIVEL MALE EXTENDED ELBOW – SWIFTFIT

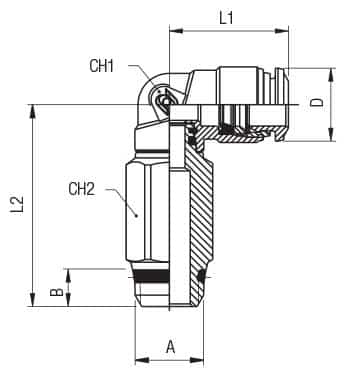

| Code | USA REF | Tube | A | B | L1 | L2 | CH1 | CH2 | D | Bag |
|---|---|---|---|---|---|---|---|---|---|---|
| 50121 00 N01 | 50120N-4-1/8 | 5/32 (4) | 1/8 | 0.217 (5.5) | 0.709 (18) | 1.240 (31.5) | 0.354 (9) | 0.472 (12) | 0.394 (10) | 10 |
| 50121 00 N02 | 50120N-4-1/4 | 5/32 (4) | 1/4 | 0.276 (7) | 0.709 (18) | 1.299 (33) | 0.354 (9) | 0.591 (15) | 0.394 (10) | 10 |
| 50121 00 N03 | 50120N-5-1/8 | 5 | 1/8 | 0.217 (5.5) | 0.787 (20) | 1.417 (36) | 0.433 (11) | 0.472 (12) | 0.492 (12.5) | 10 |
| 50121 00 N04 | 50120N-6-1/8 | 6 | 1/8 | 0.217 (5.5) | 0.827 (21) | 1.417 (36) | 0.433 (11) | 0.472 (12) | 0.492 (12.5) | 10 |
| 50121 00 N05 | 50120N-6-1/4 | 6 | 1/4 | 0.276 (7) | 0.827 (21) | 1.476 (37.5) | 0.433 (11) | 0.591 (15) | 0.492 (12.5) | 10 |
| 50121 00 N06 | 50120N-8-1/8 | 5/16 (8) | 1/8 | 0.217 (5.5) | 0.886 (22.5) | 1.594 (40.5) | 0.472 (12) | 0.472 (12) | 0.571 (14.5) | 10 |
| 50121 00 N07 | 50120N-8-1/4 | 5/16 (8) | 1/4 | 0.276 (7) | 0.886 (22.5) | 1.594 (40.5) | 0.472 (12) | 0.591 (15) | 0.571 (14.5) | 10 |
| 50121 00 N08 | 50120N-8-3/8 | 5/16 (8) | 3/8 | 0.295 (7.5) | 0.886 (22.5) | 1.614 (41) | 0.472 (12) | 0.630 (16) | 0.571 (14.5) | 10 |
| 50121 00 N09 | 50120N-10-1/4 | 10 | 1/4 | 0.276 (7) | 1.043 (26.5) | 1.811 (46) | 0.551 (14) | 0.591 (15) | 0.689 (17.5) | 10 |
| 50121 00 N10 | 50120N-10-3/8 | 10 | 3/8 | 0.295 (7.5) | 1.043 (26.5) | 1.732 (44) | 0.551 (14) | 0.669 (17) | 0.689 (17.5) | 10 |
Additional information
| Tube Push-In Fittings | 3mm, 5/32 (4mm), 5mm, 5/16 (8mm), 6mm, 10mm, 12mm, 14mm, 16mm |
|---|---|
| Brand | |
| Output Push-In Fittings | 1/2 in Swift-Fit, 1/4 in Swift-Fit, 1/8 in Swift-Fit, 3/8 in Swift-Fit |
| Model - Series |
Related Products
-
Push-In FittingsAignep Fixed Branch Tee – BSPT 50200N
Price range: $4.84 through $7.81Select options This product has multiple variants. The options may be chosen on the product pageQuick View -
Push-In FittingsAignep Straight Male – BSPP 50020N
Price range: $1.86 through $4.91Select options This product has multiple variants. The options may be chosen on the product pageQuick View -
Push-In FittingsAignep Straight Male Adaptor With Internal Hex 50010N
Price range: $1.54 through $2.38Select options This product has multiple variants. The options may be chosen on the product pageQuick View -

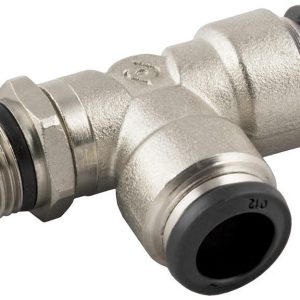

Push-In FittingsAignep Swivel Run Tee – BSPP 50225N
Price range: $4.73 through $10.99Select options This product has multiple variants. The options may be chosen on the product pageQuick View -

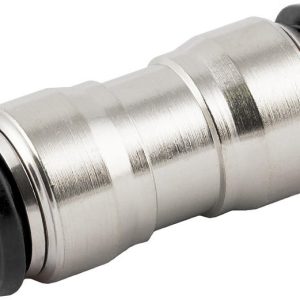

Push-In FittingsAignep Union 50040N
