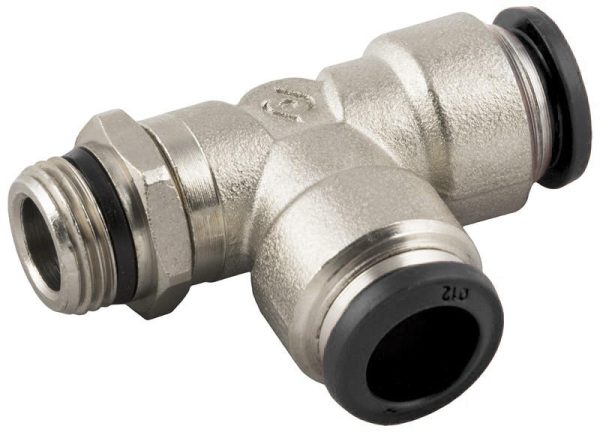

Aignep Swivel Run Tee – BSPP 50225N
Price range: $4.73 through $10.99
- Description
- Additional information
Description
AIGNEP 50225N SWIVEL RUN TEE – BSPP
| Code | USA REF | Tube | A | B | L1 | L2 | CH1 | CH2 | D | Bag |
|---|---|---|---|---|---|---|---|---|---|---|
| 50226 00 N01 | 50225N-3-M5 | 3 | M5 | 0.138 (3.5) | 0.650 (16.5) | 0.669 (17) | 0.354 (9) | 0.315 (8) | 0.394 (10) | 10 |
| 50226 00 N02 | 50225N-4-M5 | 5/32 (4) | M5 | 0.138 (3.5) | 0.669 (17) | 0.709 (18) | 0.354 (9) | 0.315 (8) | 0.394 (10) | 10 |
| 50226 00 N03 | 50225N-4-1/8 | 5/32 (4) | 1/8 | 0.217 (5.5) | 0.669 (17) | 0.728 (18.5) | 0.354 (9) | 0.512 (13) | 0.394 (10) | 10 |
| 50226 00 N04 | 50225N-4-1/4 | 5/32 (4) | 1/4 | 0.276 (7) | 0.669 (17) | 0.787 (20) | 0.354 (9) | 0.630 (16) | 0.394 (10) | 10 |
| 50226 00 N05 | 50225N-5-M5 | 5 | M5 | 0.138 (3.5) | 0.787 (20) | 0.807 (20.5) | 0.433 (11) | 0.433 (11) | 0.492 (12.5) | 10 |
| 50226 00 N06 | 50225N-5-1/8 | 5 | 1/8 | 0.217 (5.5) | 0.787 (20) | 0.807 (20.5) | 0.433 (11) | 0.512 (13) | 0.492 (12.5) | 10 |
| 50226 00 N07 | 50225N-6-M5 | 6 | M5 | 0.138 (3.5) | 0.827 (21) | 0.807 (20.5) | 0.433 (11) | 0.433 (11) | 0.492 (12.5) | 10 |
| 50226 00 N08 | 50225N-6-1/8 | 6 | 1/8 | 0.217 (5.5) | 0.827 (21) | 0.807 (20.5) | 0.433 (11) | 0.512 (13) | 0.492 (12.5) | 10 |
| 50226 00 N09 | 50225N-6-1/4 | 6 | 1/4 | 0.276 (7) | 0.827 (21) | 0.866 (22) | 0.433 (11) | 0.630 (16) | 0.492 (12.5) | 10 |
| 50226 00 N10 | 50225N-8-1/8 | 5/16 (8) | 1/8 | 0.217 (5.5) | 0.886 (22.5) | 0.886 (22.5) | 0.512 (13) | 0.512 (13) | 0.571 (14.5) | 10 |
| 50226 00 N11 | 50225N-8-1/4 | 5/16 (8) | 1/4 | 0.276 (7) | 0.886 (22.5) | 0.945 (24) | 0.512 (13) | 0.630 (16) | 0.571 (14.5) | 10 |
| 50226 00 N12 | 50225N-8-3/8 | 5/16 (8) | 3/8 | 0.315 (8) | 0.886 (22.5) | 1.024 (26) | 0.512 (13) | 0.787 (20) | 0.571 (14.5) | 10 |
| 50226 00 N13 | 50225N-8-1/2 | 5/16 (8) | 1/2 | 0.374 (9.5) | 0.886 (22.5) | 1.083 (27.5) | 0.512 (13) | 0.984 (25) | 0.571 (14.5) | 10 |
| 50226 00 N14 | 50225N-10-1/4 | 10 | 1/4 | 0.276 (7) | 1.043 (26.5) | 1.063 (27) | 0.551 (14) | 0.630 (16) | 0.689 (17.5) | 10 |
| 50226 00 N15 | 50225N-10-3/8 | 10 | 3/8 | 0.315 (8) | 1.043 (26.5) | 1.043 (26.5) | 0.551 (14) | 0.787 (20) | 0.689 (17.5) | 10 |
| 50226 00 N16 | 50225N-10-1/2 | 10 | 1/2 | 0.374 (9.5) | 1.043 (26.5) | 1.102 (28) | 0.551 (14) | 0.984 (25) | 0.689 (17.5) | 10 |
| 50226 00 N17 | 50225N-12-3/8 | 12 | 3/8 | 0.315 (8) | 1.240 (31.5) | 1.161 (29.5) | 0.630 (16) | 0.787 (20) | 0.846 (21.5) | 10 |
| 50226 00 N18 | 50225N-12-1/2 | 12 | 1/2 | 0.374 (9.5) | 1.240 (31.5) | 1.220 (31) | 0.630 (16) | 0.984 (25) | 0.846 (21.5) | 10 |
| 50226 00 N21 | 50225N-6-M12x1 | 6 | M12X1 | 0.295 (7.5) | 0.827 (21) | 0.866 (22) | 0.433 (11) | 0.630 (16) | 0.492 (12.5) | 10 |
| 50226 00 N22 | 50225N-6-M12x1,25 | 6 | M12X1,25 | 0.295 (7.5) | 0.827 (21) | 0.866 (22) | 0.433 (11) | 0.630 (16) | 0.492 (12.5) | 10 |
| 50226 00 N23 | 50225N-6-M12x1,5 | 6 | M12X1,5 | 0.295 (7.5) | 0.827 (21) | 0.866 (22) | 0.433 (11) | 0.630 (16) | 0.492 (12.5) | 10 |
Additional information
| Tube Push-In Fittings | 3mm, 5/32 (4mm), 5mm, 5/16 (8mm), 6mm, 10mm, 12mm, 14mm, 16mm |
|---|---|
| Brand | |
| Output Push-In Fittings | M5, M12x1, M12x1.25, M12x1.5, 1/2 in BSPP, 1/4 in BSPP, 1/8 in BSPP, 3/8 in BSPP |
| Model - Series |
