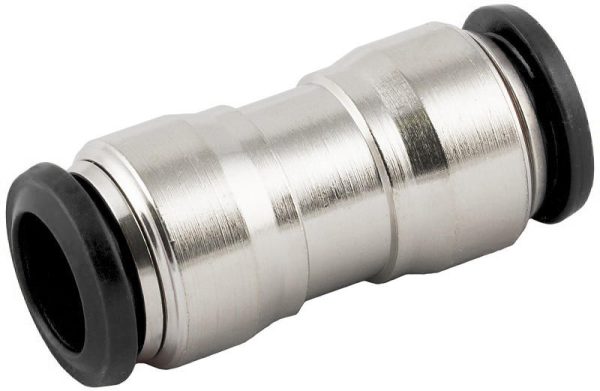

Aignep Union 50040N
Price range: $3.08 through $7.60
- Description
- Additional information
Description
AIGNEP 50040N UNION

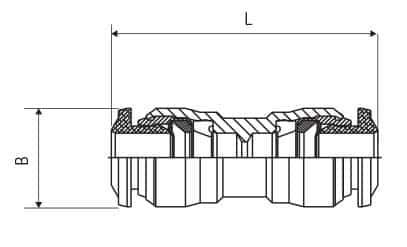

| Code | USA REF | Tube | Tube | L | B | Bag |
|---|---|---|---|---|---|---|
| 50040 00 N09 | 50040N-3 | 3 | 3 | 1.024 (26) | 0.335 (8.5) | 10 |
| 50040 00 N01 | 50040N-4 | 5/32 (4) | 5/32 (4) | 1.201 (30.5) | 0.413 (10.5) | 10 |
| 50040 00 N08 | 50040N-5 | 5 | 5 | 1.299 (33) | 0.453 (11.5) | 10 |
| 50040 00 N02 | 50040N-6-4 | 6 | 5/32 (4) | 1.260 (32) | 0.492 (12.5) | 10 |
| 50040 00 N03 | 50040N-6 | 6 | 6 | 1.339 (34) | 0.492 (12.5) | 10 |
| 50040 00 N04 | 50040N-8-6 | 5/16 (8) | 6 | 1.378 (35) | 0.571 (14.5) | 10 |
| 50040 00 N05 | 50040N-8 | 5/16 (8) | 5/16 (8) | 1.417 (36) | 0.571 (14.5) | 10 |
| 50040 00 N11 | 50040N-10-8 | 10 | 5/16 (8) | 1.594 (40.5) | 0.689 (17.5) | 10 |
| 50040 00 N06 | 50040N-10 | 10 | 10 | 1.654 (42) | 0.689 (17.5) | 10 |
| 50040 00 N12 | 50040N-12-10 | 12 | 10 | 1.791 (45.5) | 0.807 (20.5) | 10 |
| 50040 00 N07 | 50040N-12 | 12 | 12 | 1.850 (47) | 0.807 (20.5) | 10 |
| 50040 00 N10 | 50040N-14 | 14 | 14 | 1.929 (49) | 0.846 (21.5) | 10 |
| 50040 00 N13 | 50040N-16 | 16 | 16 | 2.106 (53.5) | 0.925 (23.5) | 10 |
Additional information
| Tube Push-In Fittings | 3mm, 5/32 (4mm), 5mm, 5/16 (8mm), 6mm, 10mm, 12mm, 14mm, 16mm |
|---|---|
| Brand | |
| Output Push-In Fittings | 3mm Tube, 5/32 in (4mm) Tube, 5mm Tube, 6mm Tube, 8mm (5/16 in) Tube, 10mm Tube, 12mm Tube, 14mm Tube |
| Model - Series |
