Aignep Union Elbow 50130N
Price range: $3.33 through $7.99
- Description
- Additional information
Description
AIGNEP 50130N UNION ELBOW

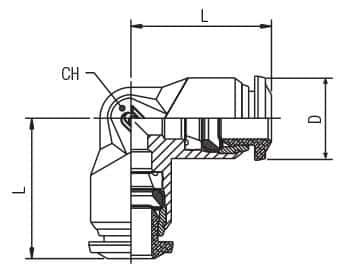

| Code | USA REF | Tube | L | CH | D | Bag |
|---|---|---|---|---|---|---|
| 50130 00 N07 | 50130N-3 | 3 | 0.669 (17) | 0.354 (9) | 0.394 (10) | 10 |
| 50130 00 N01 | 50130N-4 | 5/32 (4) | 0.669 (17) | 0.354 (9) | 0.394 (10) | 10 |
| 50130 00 N06 | 50130N-5 | 5 | 0.787 (20) | 0.433 (11) | 0.492 (12.5) | 10 |
| 50130 00 N02 | 50130N-6 | 6 | 0.827 (21) | 0.433 (11) | 0.492 (12.5) | 10 |
| 50130 00 N03 | 50130N-8 | 5/16 (8) | 0.886 (22.5) | 0.512 (13) | 0.551 (14) | 10 |
| 50130 00 N04 | 50130N-10 | 10 | 1.043 (26.5) | 0.630 (16) | 0.669 (17) | 10 |
| 50130 00 N05 | 50130N-12 | 12 | 1.201 (30.5) | 0.748 (19) | 0.846 (21.5) | 10 |
| 50130 00 N08 | 50130N-14 | 14 | 1.280 (32.5) | 0.748 (19) | 0.846 (21.5) | 10 |
| 50130 00 N09 | 50130N-16 | 16 | 1.299 (33) | 0.748 (19) | 0.925 (23.5) | 10 |
Additional information
| Tube Push-In Fittings | 3mm, 5/32 (4mm), 5mm, 5/16 (8mm), 6mm, 10mm, 12mm, 14mm, 16mm |
|---|---|
| Brand | |
| Model - Series |
