Aignep Union Y 50310N
Price range: $6.34 through $10.79
- Description
- Additional information
Description

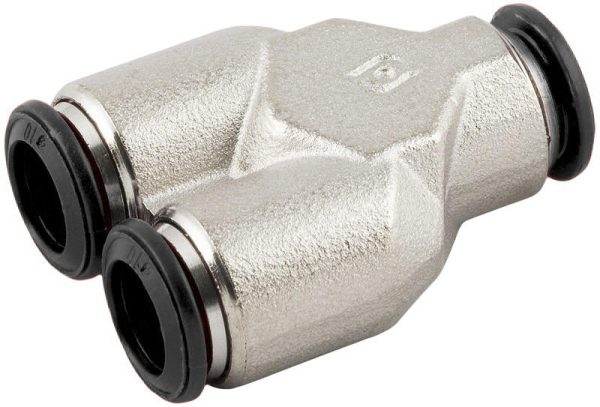

AIGNEP 50310N UNION Y

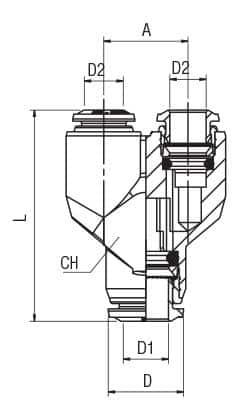

| Code | USA REF | Tube | A | L | CH | D | Bag |
|---|---|---|---|---|---|---|---|
| 50310 00 N07 | 50310N-3 | 3 | 0.394 (10) | 1.142 (29) | 0.433 (11) | 0.394 (10) | 10 |
| 50310 00 N01 | 50310N-4 | 5/32 (4) | 0.433 (11) | 1.260 (32) | 0.433 (11) | 0.394 (10) | 10 |
| 50310 00 N04 | 50310N-5 | 5 | 0.531 (13.5) | 1.378 (35) | 0.512 (13) | 0.492 (12.5) | 10 |
| 50310 00 N02 | 50310N-6 | 6 | 0.531 (13.5) | 1.437 (36.5) | 0.512 (13) | 0.492 (12.5) | 10 |
| 50310 00 N03 | 50310N-8 | 5/16 (8) | 0.610 (15.5) | 1.614 (41) | 0.591 (15) | 0.551 (14) | 10 |
| 50310 00 N08 | 50310N-10 | 10 | 0.728 (18.5) | 1.890 (48) | 0.709 (18) | 0.669 (17) | 10 |
Additional information
| Tube Push-In Fittings | 3mm, 5/32 (4mm), 5mm, 5/16 (8mm), 6mm, 10mm, 12mm, 14mm, 16mm |
|---|---|
| Brand | |
| Model - Series |
