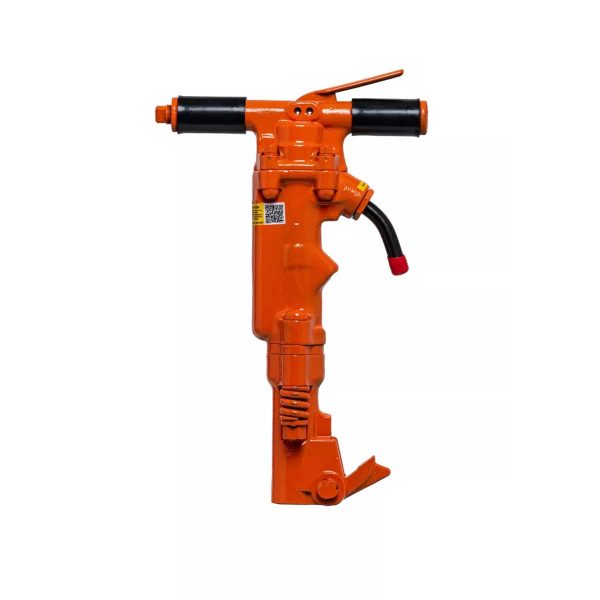

APT M160A Paving Breaker, 1-1/4x6
APT M160A Paving Breaker, 1-1/4x6

APT M160A Paving Breaker, 1-1/4×6

Original price was: $2,510.82.Current price is: $1,683.00.

The APT M160A, Airgo-Line® Paving Breaker is a 60 lb class tool. The ergonomically designed handle helps reduce harmful vibration to the hands and arm of the operator. The versitil tool is based on the standard Model 160, the tool being easily converted to the standard handle or ergonomic handle or vise-versa. No power is lost from the standard tool but does increase efficiency and output due to the reduction in operator fatigue

SKU: 1280582246 Categories: , , Brand:

Description

APT M160A Breaker

The APT M160A, Airgo-Line® Paving Breaker is a 60 lb class tool. The ergonomically designed handle helps reduce harmful vibration to the hands and arm of the operator. The versatile tool is based on the standard Model 160, the tool being easily converted to the standard handle or ergonomic handle or vise-versa. No power is lost from the standard tool but does increase efficiency and output due to the reduction in operator fatigue

Download Manual

Airgo-Line Head Assembly

Model – Part # Units M160A – 17746 M160A – 17747
Chuck Size in 1 – 1/8 x 6 1 – 1/4 x 6
Bore Diameter in 2 – 1/4
Stroke in 4 – 1/8
Blows per Minute bpm 1,680
CFM @ 90 psi CFM 60 – 65
Weight lbs 70
Length in 28 – 1/4
Air Inlet NPT in 1/2 MALE NPT

STANDARD FEATURES

  • AIRGO-LINE® Ergonomic Back Head (interexchangeable with standard Back Head)
  • Patented Automatic Ball Valve (U.S. pat. # 8,276,682 B2)
  • Drop-forged, steel handle
  • Built-in automatic oiler
  • Rubber handle grips
  • Latch-type retainer
  • Swivel hose connection
  • Noise-dampening mufflers available
  • Four-bolt backhead
  • Universal hose connector supplied

Air Pressure

The recommended air requirement for the operation of APT tools is 90 psi (6.2 bar). Lower air pressure will decrease power, too high a pressure will increase unwanted stresses in the tool. For proper CFM ratings, please refer to the specification charts shown for each tool in this catalog.

Hose Size

APT recommends the use of at least 1⁄2” inside diameter or larger hoses to assure sufficient air flow to the tool. For portable compressor hose and longer lengths, 3⁄4 “ hose is recommended. Keep the overall length of the hose to a minimum to prevent pressure loss at the tool.

Connecting Hoses

Hoses should be rated for a minimum of 250 psi (17.2 bar). Before connecting the air hose to the tool, check the tool inlet connector to be sure it is clean and free of dirt or debris. Keeping dirt and debris from entering the tool will assure long and satisfactory operation.

Additional information

Weight 70 lbs
Dimensions 28.25 in
Brand

Model - Series
