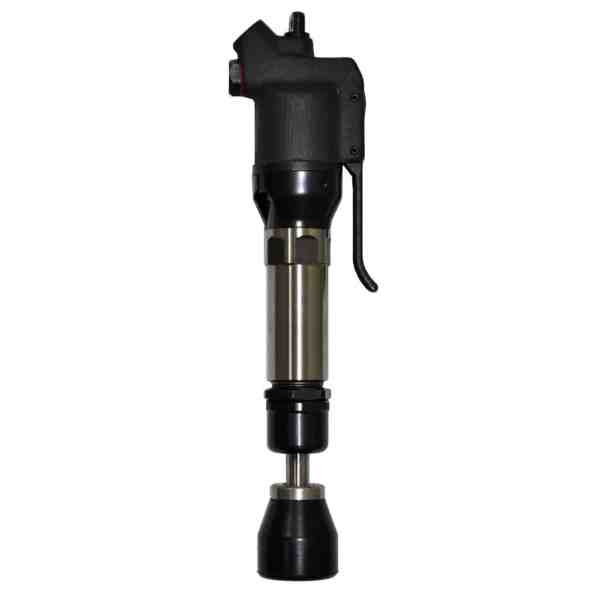

Chicago Pneumatic CP0200B18 BENCH RAMMER
Chicago Pneumatic CP0200B18 BENCH RAMMER

Chicago Pneumatic CP0200B18 BENCH RAMMER

Original price was: $873.18.Current price is: $602.50.

Cp0200B18 – Compact And Lightweight

SKU: 6151618010 Categories: , , Brand:

Description

Benefits

  • Ideal for foundry applications
  • Comfortable operation and high production
  • Bench rammers used for casting sand in cylinders, large molds

    • Features

  • High effiency due to the high bpm
  • Extra durability due to heat treated parts

    •
    Model CP0200B18
    Part number 6151618010
    Length 280 mm 11.03″
    Length 11.03″ 280 mm
    Net weight 1.5 kg 3.3 lb
    Net weight 3.3 lb 1 1/2 kg
    Average air consumption 14.1 cfm
    Actual air consumption 14.1 cfm 400 l/mn
    Actual air consumption 6.67 l/s 14.1 cfm
    Actual air consumption 400 l/mn 14.1 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 95 db(A)
    Sound Power 106 db(A)
    European Sound standard ISO 15744
    Sound uncertainty 3 db(A)
    Vibration ISO ISO-28927-6
    Vibration 19.4 m/s²
    Vibration uncertainty (K) 5.9 m/s²
    Blows per minute 1800
    Bore 0.71″ 18 mm
    Bore 18 mm 0.71″
    Stroke 1.97″ 50 mm
    Stroke 50 mm 1.97″
    Butt diameter 41 mm 1.61″
    Butt diameter 1.61″ 41 mm
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-4:2012
