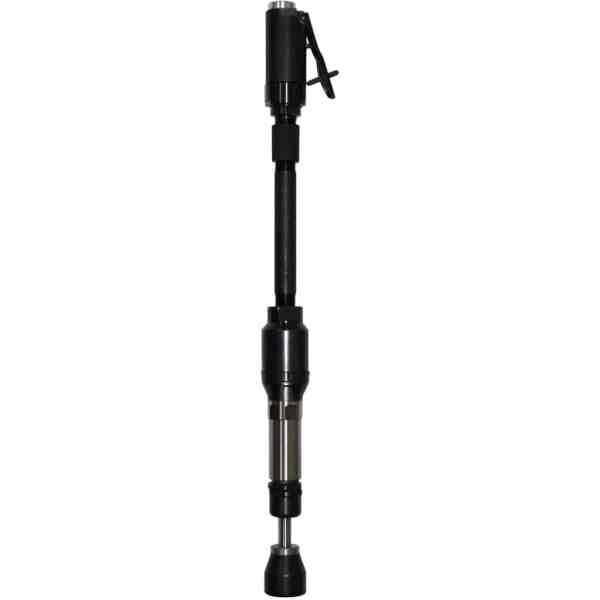

Chicago Pneumatic CP0200B22L-2F FLOOR RAMMER
Chicago Pneumatic CP0200B22L-2F FLOOR RAMMER

Chicago Pneumatic CP0200B22L-2F FLOOR RAMMER

Original price was: $1,033.87.Current price is: $713.37.

Cp0200B22L-2F – Heavy Compressing Application

SKU: 6151618110 Categories: , , Brand:

Description

Benefits

  • Ideal for foundry applications
  • Floor rammer to be used on stand position, to compact sand at floor level

    • Features

  • Powerful rammers, but still lightweight tools
  • Extended models for a comfortable use
  • Delivered with safety lever

    •
    Model CP0200B22L-2F
    Part number 6151618110
    Length 633 mm 24,9″
    Length 24,9 633
    Net weight 3.3 kg 7.2 lb
    Net weight 7.2 lb 3.3 kg
    Actual air consumption 17.7 cfm 502 l/mn
    Actual air consumption 8.37 l/s 17.7 cfm
    Actual air consumption 502 l/mn 17.7 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 95 db(A)
    Sound Power 106 db(A)
    European Sound standard ISO 15744
    Sound uncertainty 3 db(A)
    Vibration ISO ISO-28927-6
    Vibration 17.7 m/s²
    Vibration uncertainty (K) 5.4 m/s²
    Blows per minute 1020
    Bore 0.859375″ 22 mm
    Bore 22 mm 0.859375″
    Stroke 2.515625″ 64 mm
    Stroke 64 mm 2.515625″
    Butt diameter 51 mm 2.01″
    Butt diameter 2.01″ 51 mm
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-4:2012
