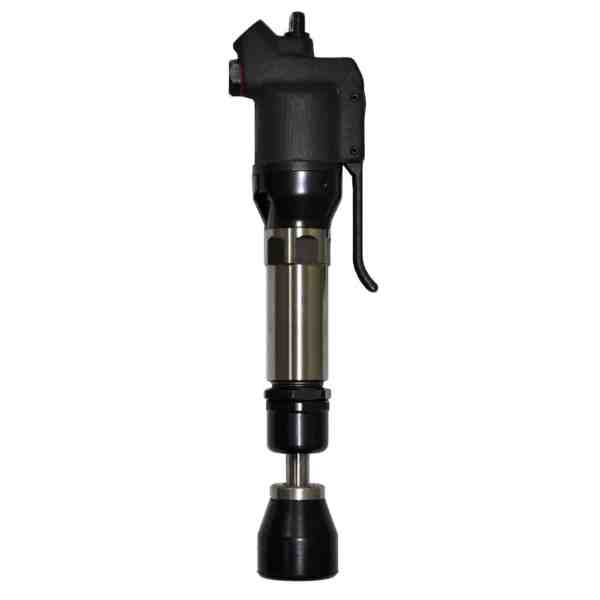

Chicago Pneumatic CP0200B25 BENCH RAMMER
Chicago Pneumatic CP0200B25 BENCH RAMMER

Chicago Pneumatic CP0200B25 BENCH RAMMER

Original price was: $1,594.52.Current price is: $1,100.22.

Cp0200B25 – Compact And Lightweight

SKU: 6151618050 Categories: , , Brand:

Description

Benefits

  • Ideal for foundry applications
  • Comfortable operation and high production
  • Bench rammers used for casting sand in cylinders, large molds

    • Features

  • High effiency due to the high bpm
  • Extra durability due to heat treated parts

    •
    Model CP0200B25
    Part number 6151618050
    Length 506 mm 19,9″
    Length 19,9 506
    Net weight 5.5 kg 12.1 lb
    Net weight 12.1 lb 5 1/2 kg
    Actual air consumption 24.7 cfm 700 l/mn
    Actual air consumption 11.67 l/s 24.7 cfm
    Actual air consumption 700 l/mn 24.7 cfm
    Air inlet thread size 3/8 “
    Min. hose size 13 mm 1/2″
    Min. hose size 1/2″ 13 mm
    Sound pressure 95 db(A)
    Sound Power 106 db(A)
    European Sound standard ISO 15744
    Sound uncertainty 3 db(A)
    Vibration ISO ISO-28927-6
    Vibration 24.3 m/s²
    Vibration uncertainty (K) 7.6 m/s²
    Blows per minute 780
    Bore 1″ 25.4 mm
    Bore 25.4 mm 1″
    Stroke 3.26″ 83 mm
    Stroke 83 mm 3.26″
    Butt diameter 67 mm 2.64″
    Butt diameter 2.64″ 67 mm
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-4:2012
