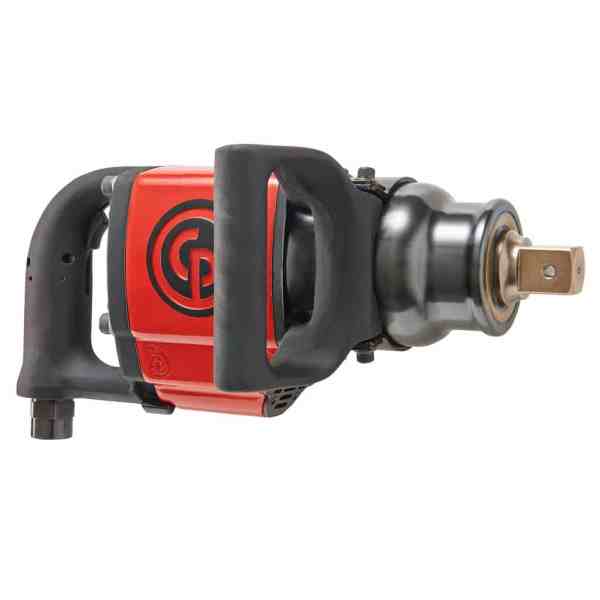

Chicago Pneumatic CP0611-D28H 1" IMPACT WRENCH
Chicago Pneumatic CP0611-D28H 1" IMPACT WRENCH
Chicago Pneumatic CP0611-D28H 1" IMPACT WRENCH - Image 2
Chicago Pneumatic CP0611-D28H 1" IMPACT WRENCH - Image 3
Chicago Pneumatic CP0611-D28H 1" IMPACT WRENCH - Image 4

Chicago Pneumatic CP0611-D28H 1″ IMPACT WRENCH

Original price was: $4,536.76.Current price is: $3,130.37.

CP0611-D28H – The Super Industrial in Renewed Design

SKU: 6151590160 Categories: , Brand:

Description

CP0611-D28H

CP0611-D28H – The Super Industrial in Renewed Design

Benefits

  • Best 1″ impact to loosen big bolts on very demanding industries
  • Operator comfort and control thanks to perfect ergonomic design even at VERY high torque
  • Progressive torque thanks to the 2-Jaw clutch
  • Unmatched durability with reliable mechanism & durable housing
  • Ideal for Heavy Industrial Maintenance and Production applications

    • Features

  • Super Industrial 1″ impact wrench
  • Reliable 2-jaw clutch with the highest Blows per Minutes
  • Full Teasing (inside) trigger with durable reverse
  • Durable aluminum body & indestructible steel clutch housing
  • Compact 3-part construction & easy maintenance
  • Hole type socket retainer with O-ring
  • 360° adjustable D-type side handle

    •
    Model CP0611-D28H
    Part number 6151590160
    Length 360 mm 14.17″
    Length 14.17″ 360 mm
    Net weight 10.4 kg 22.9 lb
    Net weight 22.9 lb 10.4 kg
    Side to center 46 mm 1.81″
    Side to center 1.81″ 46 mm
    Actual air consumption 68 cfm
    Actual air consumption 32 l/s 68 cfm
    Free speed air consumption 55 l/s
    Air inlet thread size 1/2 “
    Min. hose size 1″
    Sound pressure 99 db(A)
    Sound Power 110 db(A)
    Vibration ISO ISO-28927-2
    Vibration 18 m/s²
    Vibration uncertainty (K) 4.1 m/s²
    Handle type D-Handle
    Square drive 1″
    Working Torque Range (fwd) 1220 – 2440 Nm 900 – 1,800
    Working Torque Range (fwd) 900 – 1,800 ft.lbs 1220 – 2440
    Maximum Torque (reverse) 3790 Nm 2800 ft.lbs
    Maximum Torque (reverse) 2800 ft.lbs 3790 Nm
    Free speed 3500 rpm
    Blows per minute 1020
    Power/weight ratio 364.4 Nm/kg 122.3 ft.lb/lb
    Power/weight ratio 122.3 ft.lb/lb 364.4 Nm/kg
    Socket retainer Hole
    Clutch type 2-jaw clutch
    Bolt size M36
    European Standards EN ISO 11148-6:2013
