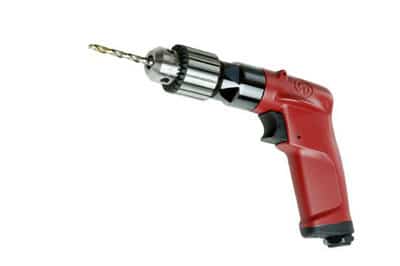

Chicago Pneumatic CP1014P05 DRILL KEY CHUCK - 0.5HP
CP1014P05 DRILL KEY CHUCK – 0.5HP
CP1014P05_1
CP1014P05_2

Chicago Pneumatic CP1014P05 DRILL KEY CHUCK – 0.5HP

Chicago Pneumatic CP1014P05 DRILL KEY CHUCK - 0.5HP

Chicago Pneumatic CP1014P05 DRILL KEY CHUCK – 0.5HP

Original price was: $592.79.Current price is: $428.13.

In stock

Original price was: $592.79.Current price is: $428.13.

CP1014P05 – High torque, Compact, Durability & Precision

SKU: 6151580190 Categories: ,

Description

CP1014P05-K

CP1014P05 – High torque, Compact, Durability & Precision

Benefits

  • High productivity thanks to high power with great control and high quality keyed chuck
  • Operator comfort thanks to exclusive ergonomic features
  • Designed for intensive duty and high durability for industrial production applications

    • Features

  • 3/8″ (10 mm) industrial pistol drill with Jacobs industrial keyed chuck
  • Ergonomic & compact body, low noise, low vibration
  • High power 0.5hp (375W) with excellent control by teasing throttle handle

    •
    Model CP1014P05
    Part number 6151580190
    Length 195 mm 7.7″
    Length 7.7″ 195 mm
    Net weight 0.64 kg 1.4 lb
    Net weight 1.4 lb 0.64 kg
    Actual air consumption 19 cfm 540 l/mn
    Actual air consumption 9 l/s 19 cfm
    Actual air consumption 540 l/mn 19 cfm
    Free speed air consumption 10;8
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 78 db(A)
    Sound Power 89 db(A)
    Vibration ISO ISO-28927-5
    Vibration <2.5 m/s²
    Vibration uncertainty (K) – m/s²
    Chuck capacity 10 mm 3/8″
    Chuck capacity 3/8″ 10 mm
    Collet / spindle size 3/8-24
    Free speed 500 rpm
    Power 375 W 1/2 hp
    Power 1/2 hp
    Stall torque 18.2 ft.lbs 24.5 Nm
    Stall torque 24.5 Nm 18.2 ft.lbs
