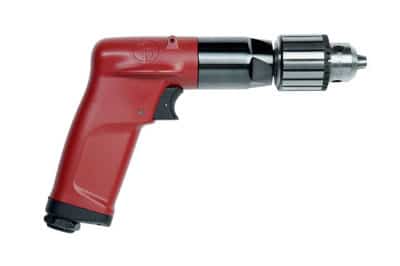

Chicago Pneumatic CP1014P33 DRILL KEY CHUCK - 0.5HP
Chicago Pneumatic CP1014P33 DRILL KEY CHUCK - 0.5HP

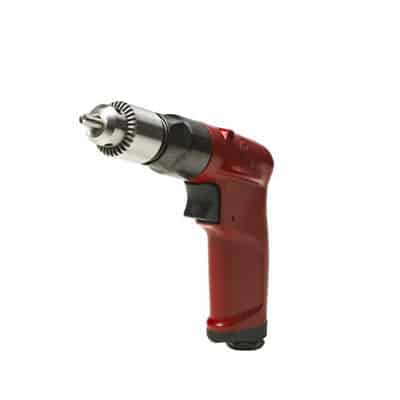

Chicago Pneumatic CP1014P33 DRILL KEY CHUCK - 0.5HP - Image 2
Chicago Pneumatic CP1014P33 DRILL KEY CHUCK - 0.5HP - Image 3

Chicago Pneumatic CP1014P33 DRILL KEY CHUCK – 0.5HP

Original price was: $533.73.Current price is: $368.28.

CP1014P33 – Compact, Durability & Precision

SKU: 6151580030 Categories: , Brand:

Description

CP1014P33

CP1014P33 – Compact, Durability & Precision

Benefits

  • High productivity thanks to high power with great control and high quality keyed chuck
  • Operator comfort thanks to exclusive ergonomic features
  • Drills for Industrial Production designed for intensive duty and high durability

    • Features

  • 1/4″ (6 mm) industrial pistol drill with Jacobs industrial keyed chuck
  • Ergonomic & compact body, Low noise, Low vibrations
  • High power 0.5hp (375W) with excellent control by teasing throttle handle

    •
    Model CP1014P33
    Part number 6151580030
    Length 160 mm 6.7″
    Length 6.7″ 160 mm
    Net weight 0.54 kg 1.2 lb
    Net weight 1.2 lb 0.54 kg
    Actual air consumption 19 cfm 540 l/mn
    Actual air consumption 9 l/s 19 cfm
    Actual air consumption 540 l/mn 19 cfm
    Free speed air consumption 10,8
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 78 db(A)
    Sound Power 89 db(A)
    Vibration ISO ISO-28927-5
    Vibration <2.5 m/s²
    Vibration uncertainty (K) – m/s²
    Chuck capacity 6.5 mm 1/4″
    Chuck capacity 1/4″ 6.5 mm
    Collet / spindle size 3/8-24
    Free speed 3300 rpm
    Power 375 W 1/2 hp
    Power 1/2 hp
    Stall torque 2.6 ft.lbs 3.5 Nm
    Stall torque 3.5 Nm 2.6 ft.lbs
