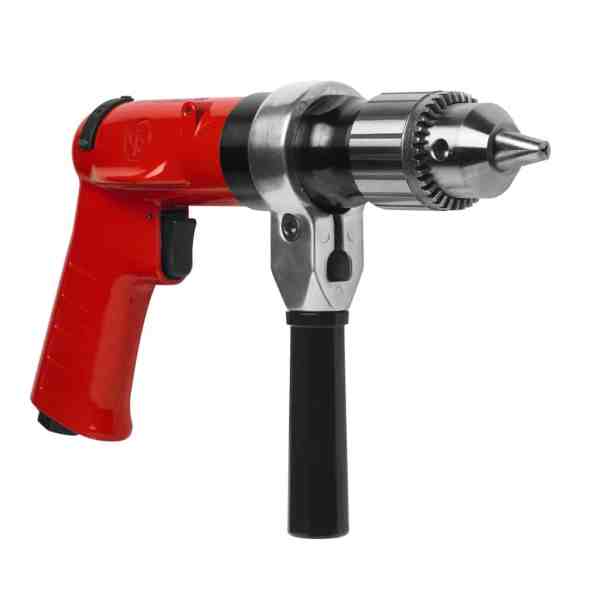

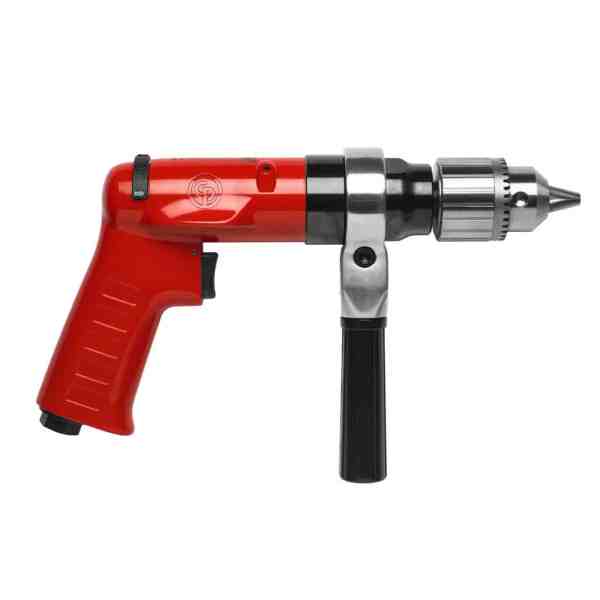

Chicago Pneumatic CP1114P05 DRILL KEY CHUCK - 0.5HP REVERSIBLE
Chicago Pneumatic CP1114P05 DRILL KEY CHUCK - 0.5HP REVERSIBLE
Chicago Pneumatic CP1114P05 DRILL KEY CHUCK - 0.5HP REVERSIBLE - Image 2

Chicago Pneumatic CP1114P05 DRILL KEY CHUCK – 0.5HP REVERSIBLE

Original price was: $674.22.Current price is: $465.22.

CP1114R05 – Reversible, Durable and Ergonomic

SKU: 6151580310 Categories: , Brand:

Description

CP1114R05

CP1114R05 – Reversible, Durable and Ergonomic

Benefits

  • Industrial durability
  • Operator comfort thanks to exclusive CP Ergo Wing
  • Perfect for drilling reaming, tapping applications

    • Features

  • 1/2″ (13 mm) industrial pistol drill with Jacobs industrial keyed chuck
  • Reversible switch
  • Ergonomic & compact body
  • Low noise and low vibration
  • Low runout : below 0.15 mm

    •
    Model CP1114R05
    Part number 6151580310
    Length 215 mm 4.46″
    Length 4.46″ 215 mm
    Net weight 1.3 kg 2.8 lb
    Net weight 2.8 lb 1.3 kg
    Actual air consumption 25.5 cfm 720 l/mn
    Actual air consumption 12 l/s 25.5 cfm
    Actual air consumption 720 l/mn 25.5 cfm
    Free speed air consumption 32 cfm
    Free speed air consumption 15 l/s 32 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 82 db(A)
    Sound Power 93 db(A)
    Vibration ISO ISO-28927-5
    Vibration 2.6 m/s²
    Vibration uncertainty (K) 1.1 m/s²
    Chuck capacity 13 mm 1/2″
    Chuck capacity 1/2″ 13 mm
    Collet / spindle size 3/8-24
    Free speed 500 rpm
    Power 410 W 1/2 hp
    Power 1/2 hp
    Stall torque 18.6 ft.lbs 25.2 Nm
    Stall torque 25.2 Nm 18.6 ft.lbs
