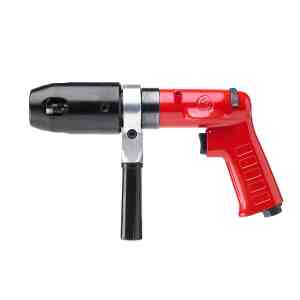

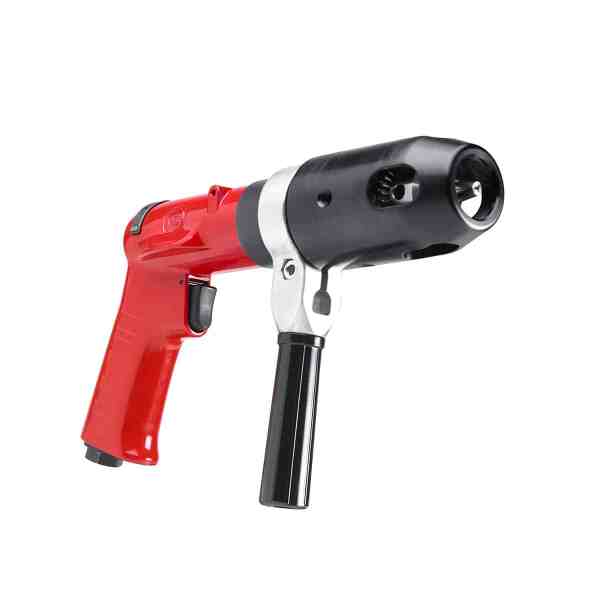

Chicago Pneumatic CP1114R05 ATEX - DRILL KEY CHUCK - 0.5HP
Chicago Pneumatic CP1114R05 ATEX - DRILL KEY CHUCK - 0.5HP
Chicago Pneumatic CP1114R05 ATEX - DRILL KEY CHUCK - 0.5HP - Image 2
Chicago Pneumatic CP1114R05 ATEX - DRILL KEY CHUCK - 0.5HP - Image 3
Chicago Pneumatic CP1114R05 ATEX - DRILL KEY CHUCK - 0.5HP - Image 4

Chicago Pneumatic CP1114R05 ATEX – DRILL KEY CHUCK – 0.5HP

Original price was: $847.86.Current price is: $585.03.

CP1114R05 ATEX – Productivity and safety brought together

SKU: 6151580380 Categories: , Brand:

Description

CP1114R05 ATEX

CP1114R05 ATEX – Productivity and safety brought together

Benefits

  • Reversible – the most polyvalent drill
  • Versatile – for drilling, tapping and reaming operations
  • High precision and comfortable handling

    • Features

  • A 500 rpm reversible drill for drilling, tapping and reaming in ATEX environments
  • Equipped with side handle
  • Fully caged with three planetary gears for perfect run-out

    •
    Model CP1114R05 ATEX
    Part number 6151580380
    Power 410 W 1/2 hp
    Power 0.55 hp
    Length 278.1 mm 10.9″
    Length 10.9″ 278.1 mm
    Net weight 2 kg 4.4 lb
    Net weight 4.4 lb 2 kg
    Height 151.7 mm 5.9″
    Height 5.9″ 151.7 mm
    Width 57.4 mm 2.2″
    Width 2.2″ 57.4 mm
    Actual air consumption 25.5 cfm 720 l/mn
    Actual air consumption 12 l/s 25.5 cfm
    Actual air consumption 720 l/mn 25.5 cfm
    Free speed air consumption 32 cfm
    Free speed air consumption 15 l/s 32 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 82 db(A)
    Sound Power 93 db(A)
    European Sound standard ISO 15744
    Sound uncertainty 3 db(A)
    Vibration ISO ISO-28927-5
    Vibration 2.6 m/s²
    Vibration uncertainty (K) 1.1 m/s²
    Chuck capacity 13 mm 1/2″
    Chuck capacity 1/2″ 13 mm
    Collet / spindle size 3/8-24
    Free speed 500 rpm
    Stall torque 18.6 ft.lbs 25.2 Nm
    Stall torque 25.2 Nm 18.6 ft.lbs
    Air inlet thread size 1/4
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-3:2012
    ATEX code II 2 G Ex h IIB T6 Gb X
    ATEX certificate number 6159925450 / CE 8P07211 A
    Air inlet thread type NPTF
