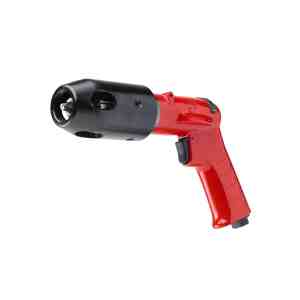

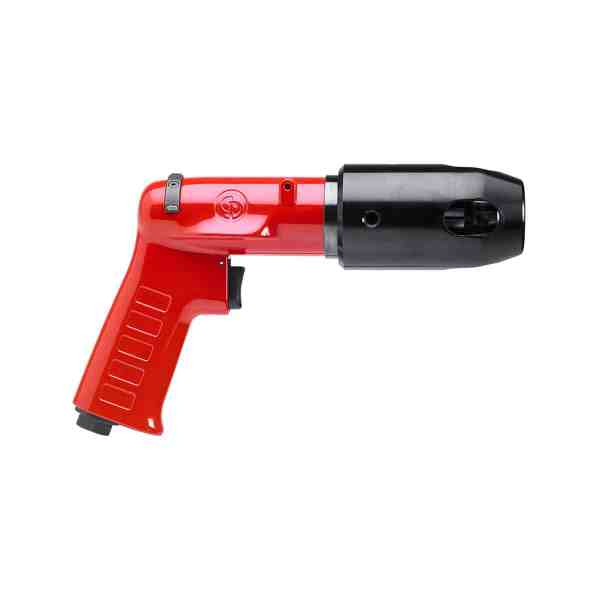

Chicago Pneumatic CP1114R26 ATEX - DRILL KEY CHUCK - 0.5HP
Chicago Pneumatic CP1114R26 ATEX - DRILL KEY CHUCK - 0.5HP
Chicago Pneumatic CP1114R26 ATEX - DRILL KEY CHUCK - 0.5HP - Image 2
Chicago Pneumatic CP1114R26 ATEX - DRILL KEY CHUCK - 0.5HP - Image 3

Chicago Pneumatic CP1114R26 ATEX – DRILL KEY CHUCK – 0.5HP

Original price was: $704.30.Current price is: $485.97.

CP1114R26 ATEX – Productivity and safety brought together

SKU: 6151580390 Categories: , Brand:

Description

CP1114R26 ATEX

CP1114R26 ATEX – Productivity and safety brought together

Benefits

  • Reversible – the most polyvalent drill
  • Versatile – for drilling, tapping and reaming operations
  • High precision and comfortable handling

    • Features

  • A 2600 rpm reversible drill for drilling, tapping and reaming in ATEX environments
  • Up to 800 hours service interval
  • Fully caged with three planetary gears for perfect run-out

    •
    Model CP1114R26 ATEX
    Part number 6151580390
    Power 410 W 0.55 hp
    Power 0.55 hp
    Length 245.9 mm 9.7″
    Length 9.7″ 245.9 mm
    Net weight 1.6 kg 3.5 lb
    Net weight 3.5 lb 1.6 kg
    Height 151.7 mm 5.9″
    Height 5.9″ 151.7 mm
    Width 57.4 mm 2.2″
    Width 2.2″ 57.4 mm
    Actual air consumption 25.5 cfm 720 l/mn
    Actual air consumption 12 l/s 25.5 cfm
    Actual air consumption 720 l/mn 25.5 cfm
    Free speed air consumption 32 cfm
    Free speed air consumption 15 l/s 32 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 84 db(A)
    Sound Power 95 db(A)
    European Sound standard ISO 15744
    Sound uncertainty 3 db(A)
    Vibration ISO ISO-28927-5
    Vibration 2.1 m/s²
    Vibration uncertainty (K) 1.2 m/s²
    Chuck capacity 10 mm 3/8″
    Chuck capacity 3/8″ 10 mm
    Collet / spindle size 3/8-24
    Free speed 2600 rpm
    Stall torque 4 ft.lbs 5 1/2 Nm
    Stall torque 5.5 Nm 4 ft.lbs
    Air inlet thread size 1/4
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-3:2012
    ATEX code II 2 G Ex h IIB T6 Gb X
    ATEX certificate number 6159925460 / CE 8P07211 B
    Air inlet thread type NPTF
