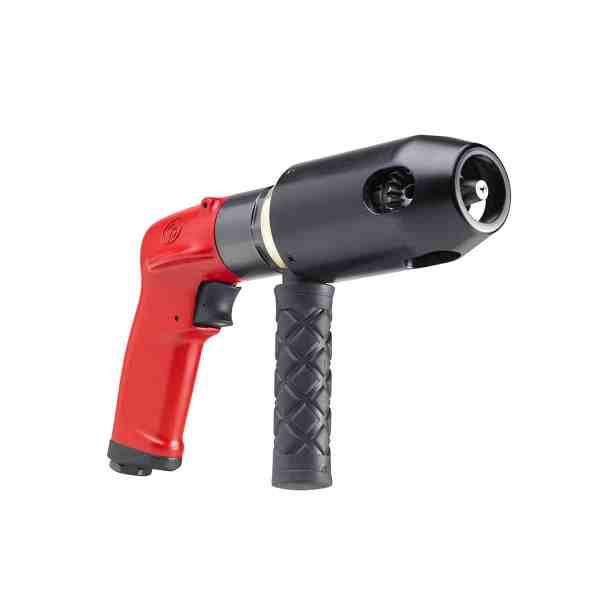

Chicago Pneumatic CP1117P05 ATEX - KEY CHUCK DRILL - 1HP
Chicago Pneumatic CP1117P05 ATEX - KEY CHUCK DRILL - 1HP
Chicago Pneumatic CP1117P05 ATEX - KEY CHUCK DRILL - 1HP - Image 2

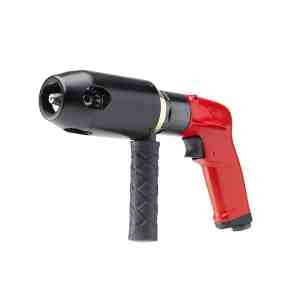

Chicago Pneumatic CP1117P05 ATEX - KEY CHUCK DRILL - 1HP - Image 3
Chicago Pneumatic CP1117P05 ATEX - KEY CHUCK DRILL - 1HP - Image 4

Chicago Pneumatic CP1117P05 ATEX – KEY CHUCK DRILL – 1HP

Original price was: $816.72.Current price is: $563.54.

CP1117P05 ATEX – Productivity and safety brought together

SKU: 6151580350 Categories: , Brand:

Description

CP1117P05 ATEX

CP1117P05 ATEX – Productivity and safety brought together

Benefits

  • ATEX certified
  • A Heavy Duty tool designed for the most demanding operations
  • Comfortable and durable

    • Features

  • An ATEX certified 1/2″ (13 mm) drill
  • 500 rpm, delivered with side handle
  • Equipped with a Jacob’s industrial chuck

    •
    Model CP1117P05 ATEX
    Part number 6151580350
    Length 268.26 mm 11.27″
    Length 11.27″ 268.26 mm
    Net weight 2.25 kg 4.96 lb
    Net weight 4.96 lb 2 1/4 kg
    Height 150.87 mm 5.94″
    Height 5.94″ 150.87 mm
    Width 61.8 mm 2.43″
    Width 2.43″ 61.8 mm
    Dimension A 158.67 mm 6.25″
    Dimension A 6.25″ 158.67 mm
    Actual air consumption 29.6 cfm 834 l/mn
    Actual air consumption 14 l/s 29.6 cfm
    Actual air consumption 834 l/mn 29.6 cfm
    Free speed air consumption 34.3 cfm
    Free speed air consumption 16.1 l/s 34.3 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 84 db(A)
    Sound Power 95 db(A)
    European Sound standard ISO 15744
    Sound uncertainty 3 db(A)
    Vibration ISO ISO-28927-5
    Vibration 2.70 m/s²
    Vibration uncertainty (K) 2 m/s²
    Chuck capacity 13 mm 1/2″
    Chuck capacity 1/2″ 13 mm
    Collet / spindle size 3/8-24
    Free speed 500 rpm
    Power 750 W 1 hp
    Power 1 hp
    Stall torque 22.2 ft.lbs 30 Nm
    Stall torque 30 Nm 22.2 ft.lbs
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-3:2012
    ATEX code II 2 G Ex h IIB T6 Gb X
    ATEX certificate number 6159924640 / CE 8P04185 A
    Air inlet thread type NPTF
