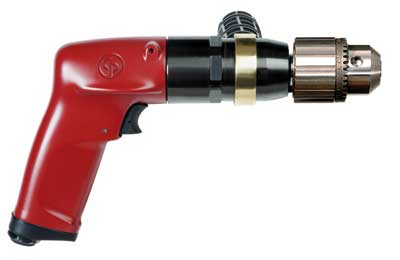

Chicago Pneumatic CP1117P09 KEY CHUCK DRILL - 1HP
Chicago Pneumatic CP1117P09 KEY CHUCK DRILL - 1HP

Chicago Pneumatic CP1117P09 KEY CHUCK DRILL – 1HP

Original price was: $642.40.Current price is: $443.26.

CP1117P09 – High torque & Durability

SKU: 6151580150 Categories: , Brand:

Description

CP1117P09-K

CP1117P09 – High torque & Durability

Benefits

  • Improve your productivity thanks to high power
  • Operator comfort thanks to exclusive ergonomic features
  • Drills for Industrial Maintenance & Production designed for intensive duty and high durability

    • Features

  • 1/2″ (13 mm) industrial pistol drill with Jacobs industrial keyed chuck
  • The best power to weight ratio with 1 hp (750 W) motor
  • Durable gearbox reduces maintenance cost and downtime

    •
    Model CP1117P09
    Part number 6151580150
    Length 203 mm 8″
    Length 8″ 203 mm
    Net weight 0.99 kg 2.2 lb
    Net weight 2.2 lb 0.99 kg
    Average air consumption 597 cfm 280 l/mn
    Average air consumption 4.7 l/s 597 cfm
    Average air consumption 280 l/mn 597 cfm
    Actual air consumption 29.8 cfm 840 l/mn
    Actual air consumption 14 l/s 29.8 cfm
    Actual air consumption 840 l/mn 29.8 cfm
    Free speed air consumption 34.8 cfm
    Free speed air consumption 16.3 l/s 34.8 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 83 db(A)
    Sound Power 94 db(A)
    Vibration ISO ISO-28927-5
    Vibration 3.7 m/s²
    Vibration uncertainty (K) 2.6 m/s²
    Chuck capacity 13 mm 1/2″
    Chuck capacity 1/2″ 13 mm
    Collet / spindle size 3/8-24
    Free speed 900 rpm
    Power 750 W 1 hp
    Power 1 hp
    Stall torque 14.3 ft.lbs 19.3 Nm
    Stall torque 19.3 Nm 14.3 ft.lbs
