-28%

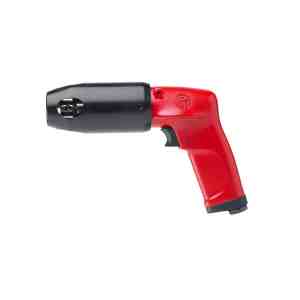

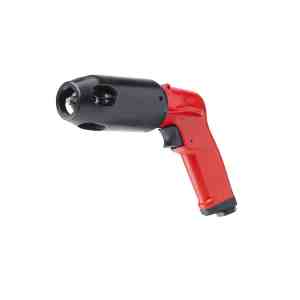

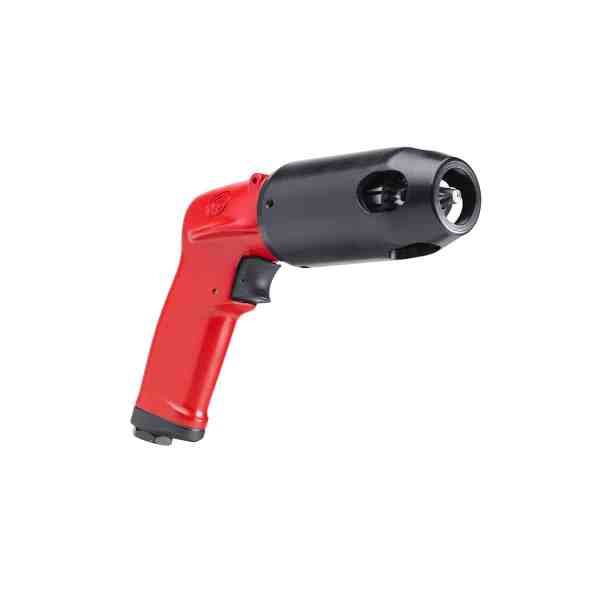

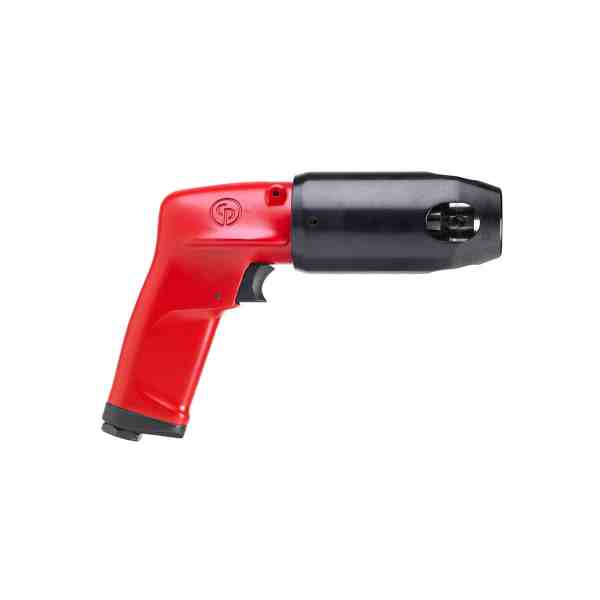

Chicago Pneumatic CP1117P32 ATEX – KEY CHUCK DRILL – 1 HP
Original price was: $553.86.$400.02Current price is: $400.02.
CP1117P26 ATEX – Productivity and safety brought together
- Description
- Additional information
Description
CP1117P32 ATEX
CP1117P26 ATEX – Productivity and safety brought together
Benefits
Features
| Model | CP1117P26 ATEX | |
| Part number | 6151580370 | |
| Net weight | 2.2 kg | 4.9 lb |
| Length | 220.06 mm | 8.66″ |
| Height | 147.77 mm | 5.82″ |
| Width | 58.59 mm | 2.31″ |
| Actual air consumption | 14 l/s | 29.8 cfm |
| Actual air consumption | 840 l/mn | 29.8 cfm |
| Free speed air consumption | 16.5 l/s | 35.2 cfm |
| Air inlet thread size | 1/4 “ | |
| Min. hose size | 10 mm | 3/8″ |
| Sound pressure | 84 db(A) | |
| Sound Power | 95 db(A) | |
| European Sound standard | ISO 15744 | |
| Sound uncertainty | 3 db(A) | |
| Vibration ISO | ISO-28927-5 | |
| Vibration | 3.6 m/s² | |
| Vibration uncertainty (K) | 1.7 m/s² | |
| Chuck capacity | 10 mm | 3/8″ |
| Collet / spindle size | 3/8-24 | |
| Free speed | 2600 rpm | |
| Power | 750 W | 1 hp |
| Stall torque | 6.3 Nm | 4.7 ft.lbs |
| European Directives | 2006/42/EC (17/05/2006) | |
| European Standards | EN ISO 11148-3:2012 | |
| ATEX code | II 2 G Ex h IIB T6 Gb X | |
| ATEX certificate number | 6159924650 / CE 8P04185 B | |
| Air inlet thread type | NPTF | |
