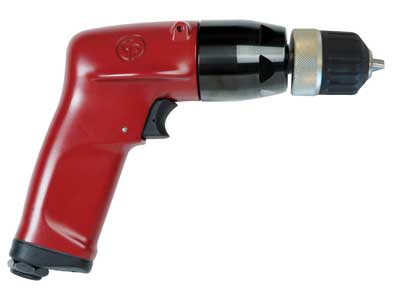

Chicago Pneumatic CP1117P32 KEYLESS CHUCK DRILL - 1 HP
Chicago Pneumatic CP1117P32 KEYLESS CHUCK DRILL - 1 HP

Chicago Pneumatic CP1117P32 KEYLESS CHUCK DRILL – 1 HP

Original price was: $513.54.Current price is: $354.35.

CP1117P32 (keyless) – High power, Durability & Precision, Keyless chuck

SKU: 6151580120 Categories: , Brand:

Description

CP1117P32-KL

CP1117P32 (keyless) – High power, Durability & Precision, Keyless chuck

Benefits

  • Improve your productivity thanks to high power & speed
  • Operator comfort thanks to exclusive ergonomic features
  • Drills for Industrial Production designed for intensive duty and high durability

    • Features

  • 3/8″ (10 mm) industrial pistol drill with Jacobs keyless chuck
  • The best power to weight ratio with 1 hp (750 W) motor
  • Durable gearbox reduce maintenance cost and downtime

    •
    Model CP1117P32 (keyless)
    Part number 6151580120
    Length 210 mm 8.3″
    Length 8.3″ 210 mm
    Net weight 0.99 kg 2.2 lb
    Net weight 2.2 lb 0.99 kg
    Average air consumption 597 cfm 280 l/mn
    Average air consumption 4.7 l/s 597 cfm
    Average air consumption 280 l/mn 597 cfm
    Actual air consumption 29.8 cfm 840 l/mn
    Actual air consumption 14 l/s 29.8 cfm
    Actual air consumption 840 l/mn 29.8 cfm
    Free speed air consumption 35.2 cfm
    Free speed air consumption 16.5 l/s 35.2 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 83 db(A)
    Sound Power 94 db(A)
    Vibration ISO ISO-28927-5
    Vibration <2.5 m/s²
    Vibration uncertainty (K) – m/s²
    Chuck capacity 10 mm 3/8″
    Chuck capacity 3/8″ 10 mm
    Collet / spindle size 3/8-24
    Free speed 3200 rpm
    Power 750 W 1 hp
    Power 1 hp
    Stall torque 4 ft.lbs 5.4 Nm
    Stall torque 5.4 Nm 4 ft.lbs
