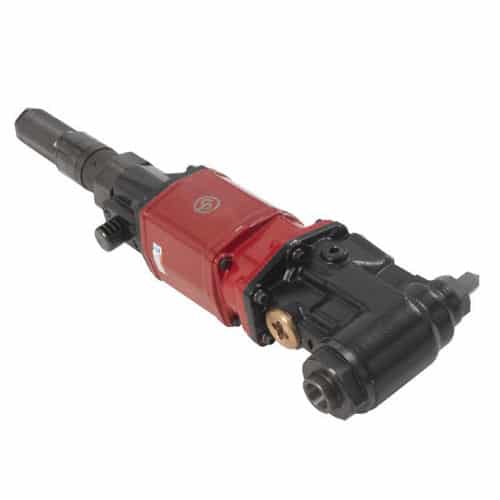

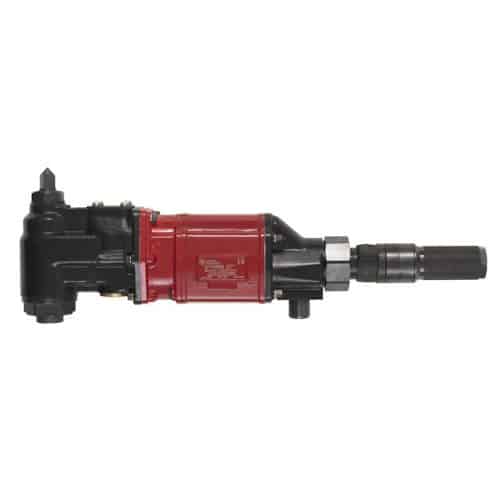

Chicago Pneumatic CP1720R22 CORNER DRILL
CP1720R22 CORNER DRILL
CP1720R22_1
CP1720R22_2
CP1720R22_3

Chicago Pneumatic CP1720R22 CORNER DRILL

Chicago Pneumatic CP1720R22 CORNER DRILL

Chicago Pneumatic CP1720R22 CORNER DRILL

Original price was: $3,365.63.Current price is: $2,430.74.

In stock

Original price was: $3,365.63.Current price is: $2,430.74.

CP1720R22 – High power, Durability & Precision, Reversible

SKU: 6151580250 Categories: ,

Description

CP1720R22

CP1720R22 – High power, Durability & Precision, Reversible

Benefits

  • Super Industrial drills designed for intensive duty and high durability with precision
  • Ideal for drilling, reaming & tapping of mild steel, cast iron

    • Features

  • 7/8″ (22 mm) reversible corner drill, 430rpm of free speed
  • Powerfull with 1.2 hp (890 W) motor
  • Morse Taper No.2 drill socket
  • Good for drilling up to 7/8″, reaming & tapping up to 3/4″
  • Self Return rolling throttle ensures the safety control
  • Excellent durable gearbox ensures the strong drilling

    •
    Model CP1720R22
    Part number 6151580250
    Length 472 mm 18.6″
    Length 18.6″ 472 mm
    Net weight 7 kg 15.4 lb
    Net weight 15.4 lb 7 kg
    Actual air consumption 53 cfm
    Actual air consumption 25 l/s 53 cfm
    Air inlet thread size 1/2 “
    Min. hose size 13 mm 1/2″
    Min. hose size 1/2″ 13 mm
    Sound pressure 106 db(A)
    Sound Power 117 db(A)
    Vibration ISO ISO-28927-5
    Vibration <2.5 m/s²
    Vibration uncertainty (K) 0.5 m/s²
    Chuck capacity 22 mm 7/8″
    Chuck capacity 7/8″ 22 mm
    Collet / spindle size M.T.2
    Free speed 430 rpm
    Power 890 W 1.2 hp
    Power 1.2 hp
    Stall torque 59.3 ft.lbs 80.4 Nm
    Stall torque 80.4 Nm 59.3 ft.lbs
