Chicago Pneumatic CP1720R32 CORNER DRILL
Chicago Pneumatic CP1720R32 CORNER DRILL
Chicago Pneumatic CP1720R32 CORNER DRILL - Image 2

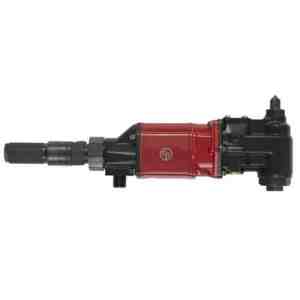

Chicago Pneumatic CP1720R32 CORNER DRILL - Image 3
Chicago Pneumatic CP1720R32 CORNER DRILL - Image 4

Chicago Pneumatic CP1720R32 CORNER DRILL

Original price was: $5,506.97.Current price is: $3,799.81.

CP1720R32 – Highest power, Durability & Precision, Reversible

SKU: 6151580260 Categories: , Brand:

Description

CP1720R32

CP1720R32 – Highest power, Durability & Precision, Reversible

Benefits

  • Designed for super intensive duty, high durability and precision in industrial maintenance and production applications
  • Ideal for drilling, reaming & tapping of mild steel, cast iron

    • Features

  • 1-1/4″ (32 mm) reversible corner drill, 350 rpm of free speed
  • Powerfull 2.2 hp (1,630 W) motor
  • Morse Taper No.3 drill socket
  • Good for drilling up to 1-1/4″ (32 mm), reaming & tapping up to 1″ (25 mm)
  • Self Return rolling throttle ensures the safety control
  • Excellent durable gearbox ensures the strong drilling

    •
    Model CP1720R32
    Part number 6151580260
    Length 578 mm 22.8″
    Length 22.8″ 578 mm
    Net weight 13.5 kg 29.7 lb
    Net weight 29.7 lb 13.5 kg
    Actual air consumption 63.6 cfm
    Actual air consumption 30 l/s 63.6 cfm
    Air inlet thread size 1/2 “
    Min. hose size 19 mm 3/4″
    Min. hose size 3/4″ 19 mm
    Sound pressure 104 db(A)
    Sound Power 115 db(A)
    Vibration ISO ISO-28927-5
    Vibration <2.5 m/s²
    Vibration uncertainty (K) 1.4 m/s²
    Chuck capacity 32 mm 1 1/4″
    Chuck capacity 1 1/4″ 32 mm
    Collet / spindle size M.T.3
    Free speed 350 rpm
    Power 1630 W 2.2 hp
    Power 2.2 hp
    Stall torque 130.1 ft.lbs 177 Nm
    Stall torque 177 Nm 130.1 ft.lbs
