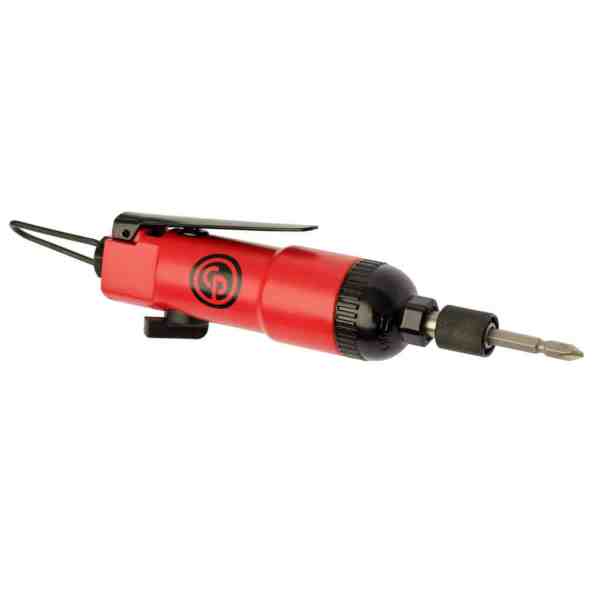

Chicago Pneumatic CP2136 1/4" HEX IMPACT SCREWDRIVER
Chicago Pneumatic CP2136 1/4" HEX IMPACT SCREWDRIVER
Chicago Pneumatic CP2136 1/4" HEX IMPACT SCREWDRIVER - Image 2

Chicago Pneumatic CP2136 1/4″ HEX IMPACT SCREWDRIVER

Original price was: $436.31.Current price is: $333.78.

CP2136 – Compact, fast & easy to use

SKU: 8941021360 Categories: , , Brand:

Description

CP2136

CP2136 – Compact, fast & easy to use

Benefits

  • Compact & Lightweight
  • Low air consumption for a better efficiency
  • Excellent for various MRO applications

    • Features

  • 1/4″ hexagonal Quick change
  • Double rocking dog clutch
  • Reversible one-hand

    •
    Model CP2136
    Part number 8941021360
    Length 185 mm 7.28346456692913″
    Length 7.28346456692913″ 185 mm
    Net weight 0.68 kg 1.49779735682819 lb
    Net weight 1.49779735682819 lb 0.68 kg
    Height 50 mm 1.96850393700787″
    Height 1.96850393700787″ 50 mm
    Actual air consumption 6.78 cfm
    Actual air consumption 3.2 l/s 6.78 cfm
    Free speed air consumption 8.81 cfm
    Free speed air consumption 4.16 l/s 8.81 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 89 db(A)
    Sound Power 100 db(A)
    Vibration ISO ISO-28927-2
    Vibration 7.4 m/s²
    Vibration uncertainty (K) 2.8 m/s²
    Output drive 1/4″
    Handle type Straight
    Clutch type Impact (Double Rocking Dog)
    Free speed 10000 rpm
    Max working torque 21 Nm 15.5 ft.lbs
    Max working torque 15.5 ft.lbs 21 Nm
    Min working torque 8 Nm 5.93 ft.lbs
    Min working torque 5.93 ft.lbs 8 Nm
    Diameter 20 mm 0.785″
    Diameter 0.785″ 20 mm
    Screw type very soft Screw type very soft
    Screw type soft Screw type soft
    Screw type hard Screw type hard
    Bit holder Quick Change Hexagonal Female
    Bolt size M4-M6
