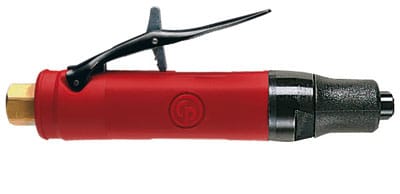

Chicago Pneumatic CP3019-20 DIE GRINDER
Chicago Pneumatic CP3019-20 DIE GRINDER

Chicago Pneumatic CP3019-20 DIE GRINDER

Original price was: $686.08.Current price is: $473.40.

CP3019-20 – High performance in a compact package

SKU: 6151600100 Categories: , , Brand:

Description

CP3019-20

CP3019-20 – High performance in a compact package

Benefits

  • Industrial angle die grinder
  • Optimal productivity
  • Highest durability in demanding applications up to 2000 hours maintenance intervals
  • Superior Ergonomics

    • Features

  • Compact body
  • Insulating composite over-housing
  • Streamlined safety lever
  • Rear exhaust
  • 1/4″ (6.35 mm) collet holder
  • 0.5 hp (375 W) governed motor
  • 20,000 rpm free speed

    •
    Model CP3019-20
    Part number 6151600100
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-9:2012
    Length 169 mm 6.7″
    Length 6.7″ 169 mm
    Net weight 0.38 kg 0.83 lb
    Net weight 0.83 lb 0.38 kg
    Average air consumption 9.54 cfm 270 l/mn
    Average air consumption 4.5 l/s 9.54 cfm
    Average air consumption 270 l/mn 9.54 cfm
    Actual air consumption 19.08 cfm 540 l/mn
    Actual air consumption 9 l/s 19.08 cfm
    Actual air consumption 540 l/mn 19.08 cfm
    Free speed air consumption 6.4 cfm
    Free speed air consumption 3 l/s 6.4 cfm
    Air inlet thread size 1/4 “
    Min. hose size 8 mm 5/16″
    Min. hose size 5/16″ 8 mm
    Sound pressure 74.7 db(A)
    Sound Power 85.7 db(A)
    Vibration ISO ISO-28927-12
    Vibration 4.1 m/s²
    Vibration uncertainty (K) 1.5 m/s²
    Free speed 20000 rpm
    Power 375 W 1/2 hp
    Power 1/2 hp 375 W
    Rear exhaust Rear exhaust
    Collet size 6.35 mm 1/4″
    Collet size 1/4″ 6.35 mm
