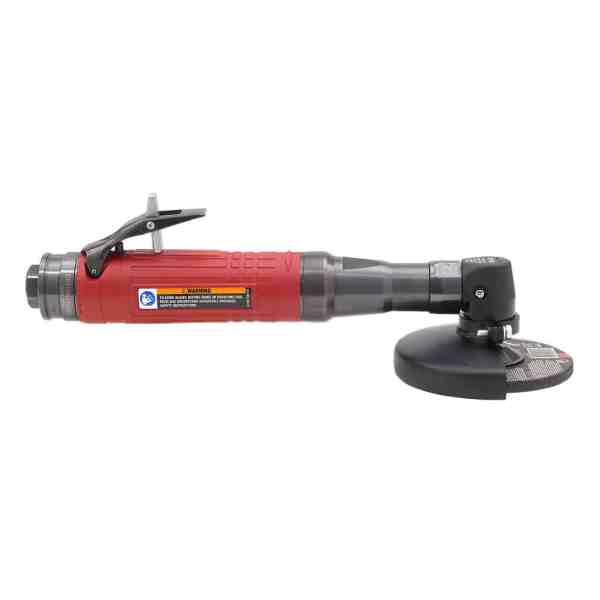

Chicago Pneumatic CP3109-13A4ES ANGLE GRINDER 4"
Chicago Pneumatic CP3109-13A4ES ANGLE GRINDER 4"

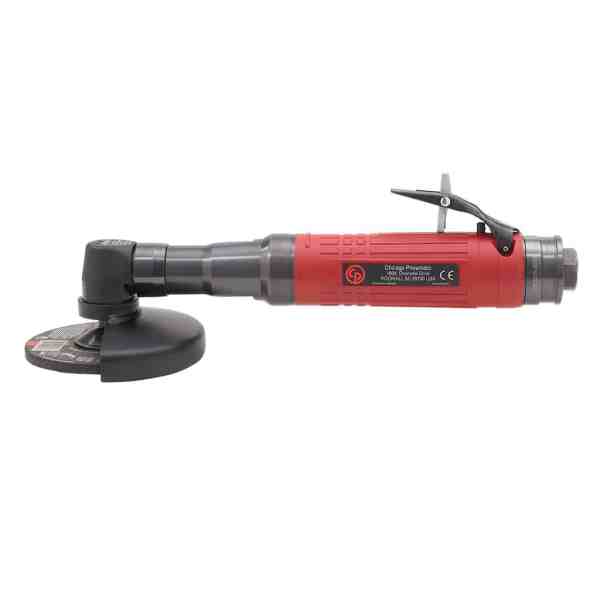

Chicago Pneumatic CP3109-13A4ES ANGLE GRINDER 4" - Image 2

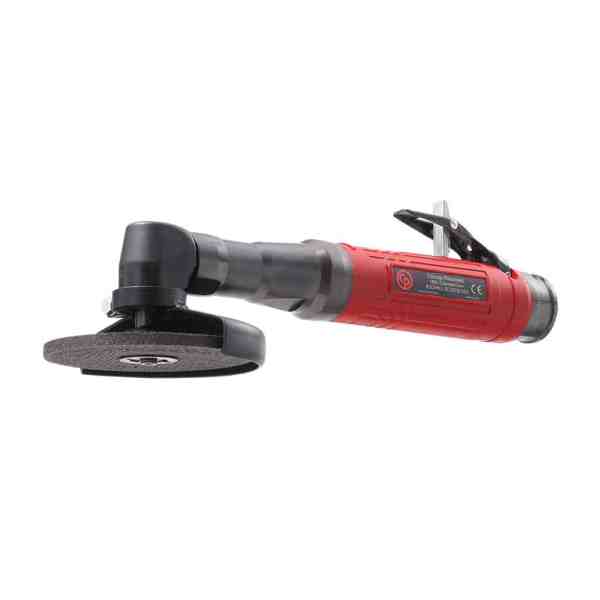

Chicago Pneumatic CP3109-13A4ES ANGLE GRINDER 4" - Image 3

Chicago Pneumatic CP3109-13A4ES ANGLE GRINDER 4″

Original price was: $1,493.38.Current price is: $1,030.43.

CP3109-13A4ES – High performance and extended shaft

SKU: 6151607040 Categories: , , Brand:

Description

CP3109-13A4ES

CP3109-13A4ES – High performance and extended shaft

Benefits

  • Industrial extended shaft angle wheel grinder
  • Optimal productivity
  • Highest durability in demanding applications up to 2,000 hours maintenance intervals

    • Features

  • Extended body
  • Highly durable bevel gear
  • Insulating composite over-housing
  • Streamlined safety lever
  • Steel housing
  • 4″ (100 mm) wheel capacity
  • 0.8 hp (600 W) governed motor
  • 13,000 rpm free speed
  • Rear exhaust

    •
    Model CP3109-13A4ES
    Part number 6151607040
    Length 287 mm 11.3″
    Length 11.3″ 287 mm
    Net weight 1.5 kg 3.3 lb
    Net weight 3.3 lb 1 1/2 kg
    Average air consumption 21 cfm 600 l/mn
    Average air consumption 10 l/s 21 cfm
    Average air consumption 600 l/mn 21 cfm
    Actual air consumption 32 cfm 900 l/mn
    Actual air consumption 15.1 l/s 32 cfm
    Actual air consumption 900 l/mn 32 cfm
    Free speed air consumption 21 cfm
    Free speed air consumption 10 l/s 21 cfm
    Air inlet thread size 3/8
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 84 db(A)
    Sound Power 95 db(A)
    Vibration ISO ISO-28927-1
    Vibration 7.2 m/s²
    Vibration uncertainty (K) 2.4 m/s²
    Spindle thread 3/8-24
    Wheel size 100 mm 4″
    Wheel size 4″ 100 mm
    Free speed 13000 rpm
    Power 600 W 0.8 hp
    Power 0.8 hp 600 W
    Collet size NA  NA
    Collet size NA NA
