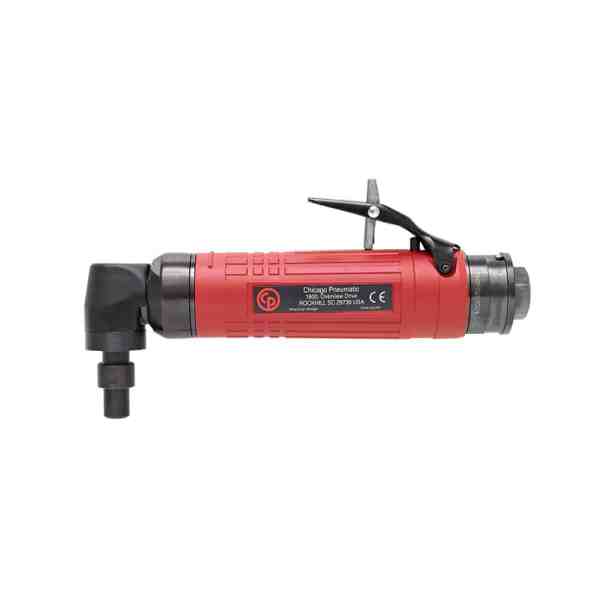

Chicago Pneumatic CP3109-13AC ANGLE DIE GRINDER
Chicago Pneumatic CP3109-13AC ANGLE DIE GRINDER
Chicago Pneumatic CP3109-13AC ANGLE DIE GRINDER - Image 2
Chicago Pneumatic CP3109-13AC ANGLE DIE GRINDER - Image 3

Chicago Pneumatic CP3109-13AC ANGLE DIE GRINDER

Original price was: $1,319.67.Current price is: $910.57.

CP3109-13AC – High performance

SKU: 6151604060 Categories: , , Brand:

Description

CP3109-13AC

CP3109-13AC – High performance

Benefits

  • Industrial die grinder
  • Optimal productivity
  • Highest durability in demanding applications with up to 2,000 hours between maintenance intervals

    • Features

  • Insulating composite over-housing
  • Streamlined safety lever
  • Highly durable bevel gear
  • Steel housing
  • 1/4″ (6.35 mm) collet holder
  • 0.8 hp (600 W) governed motor
  • 13,000 rpm free speed
  • Rear exhaust

    •
    Model CP3109-13AC
    Part number 6151604060
    Length 216 mm 8.6″
    Length 8.6″ 216 mm
    Net weight 1.1 kg 2.4 lb
    Net weight 2.4 lb 1.1 kg
    Average air consumption 15.9 cfm 450 l/mn
    Average air consumption 7.5 l/s 15.9 cfm
    Average air consumption 450 l/mn 15.9 cfm
    Actual air consumption 31.8 cfm 900 l/mn
    Actual air consumption 15 l/s 31.8 cfm
    Actual air consumption 900 l/mn 31.8 cfm
    Free speed air consumption 21 cfm
    Free speed air consumption 10 l/s 21 cfm
    Air inlet thread size 3/8 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 85 db(A)
    Sound Power 96 db(A)
    Vibration ISO ISO-28927-12
    Vibration 3.7 m/s²
    Vibration uncertainty (K) 1.4 m/s²
    Free speed 13000 rpm
    Power 600 W 0.8 hp
    Power 0.8 hp 600 W
    Rear exhaust Rear exhaust
    Collet size 6.35 mm 1/4″
    Collet size 1/4″ 6.35 mm
