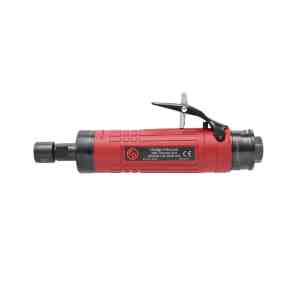

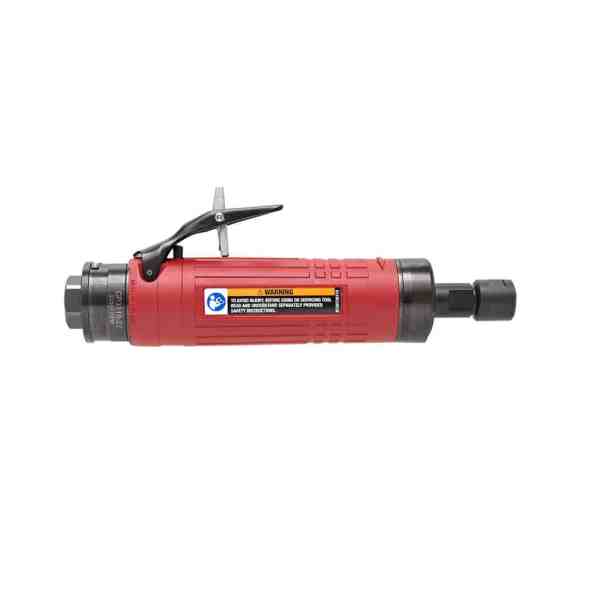

Chicago Pneumatic CP3109-28 DIE GRINDER
Chicago Pneumatic CP3109-28 DIE GRINDER
Chicago Pneumatic CP3109-28 DIE GRINDER - Image 2
Chicago Pneumatic CP3109-28 DIE GRINDER - Image 3

Chicago Pneumatic CP3109-28 DIE GRINDER

Original price was: $976.08.Current price is: $673.50.

CP3109-28 – High performance

SKU: 6151600040 Categories: , , Brand:

Description

CP3109-28

CP3109-28 – High performance

Benefits

  • Industrial die grinder
  • High productivity
  • Highest durability in demanding applications up to 2000 hours maintenance intervals

    • Features

  • Steel housing
  • Insulating composite over-housing
  • Streamlined safety lever
  • Rear exhaust
  • 1/4″ (6.35 mm) collet holder
  • 0.8 hp (600 W) governed motor
  • 28,000 rpm free speed

    •
    Model CP3109-28
    Part number 6151600040
    Length 222 mm 8.8″
    Length 8.8″ 222 mm
    Net weight 0.9 kg 2 lb
    Net weight 2 lb 0.9 kg
    Average air consumption 15.9 cfm 960 l/mn
    Average air consumption 16 l/s 15.9 cfm
    Average air consumption 960 l/mn 15.9 cfm
    Actual air consumption 31.8 cfm 900 l/mn
    Actual air consumption 15 l/s 31.8 cfm
    Actual air consumption 900 l/mn 31.8 cfm
    Free speed air consumption 34 cfm
    Free speed air consumption 16 l/s 34 cfm
    Air inlet thread size 3/8 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 85 db(A)
    Sound Power 96 db(A)
    Vibration ISO ISO-28927-12
    Vibration <2.5 m/s²
    Free speed 28000 rpm
    Power 600 W 0.8 hp
    Power 0.8 hp 600 W
    Rear exhaust Rear exhaust
    Collet size 6.35 mm 1/4″
    Collet size 1/4″ 6.35 mm
