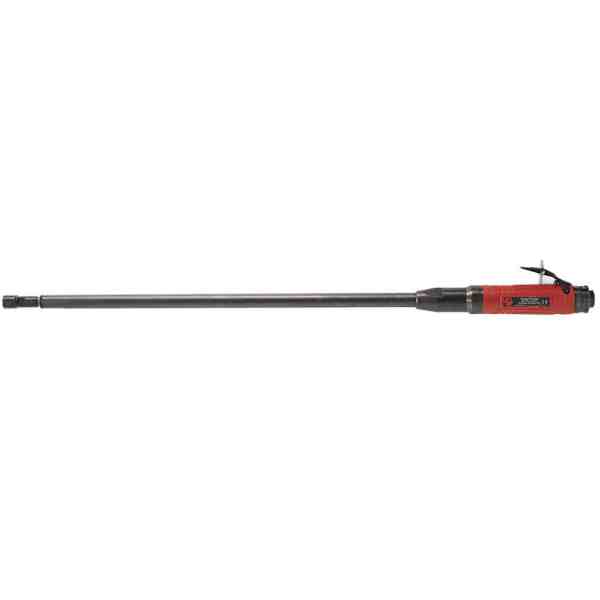

Chicago Pneumatic CP3119-12EXL EXT. DIE GRINDER
Chicago Pneumatic CP3119-12EXL EXT. DIE GRINDER
Chicago Pneumatic CP3119-12EXL EXT. DIE GRINDER - Image 2

Chicago Pneumatic CP3119-12EXL EXT. DIE GRINDER

Original price was: $2,883.12.Current price is: $1,989.35.

CP3119-12EXL – High performance

SKU: 6151602160 Categories: , , Brand:

Description

CP3119-12EXL

CP3119-12EXL – High performance

Benefits

  • Industrial extended shaft long die grinder
  • High productivity
  • Highest durability in demanding applications with up to 2000 hrs between maintenance intervals

    • Features

  • 33.6″ (853 mm) extended body with one piece steel structure
  • Steel construction
  • Insulating composite over-housing
  • Streamlined safety lever
  • Rear exhaust1/4″ (6.35 mm) collet holder
  • 1.2 hp (900 W) governed motor
  • 12,000 rpm free speed

    •
    Model CP3119-12EXL
    Part number 6151602160
    Length 853 mm 33,6″
    Length 33,6 853
    Net weight 2.7 kg 5.9 lb
    Net weight 5.9 lb 2.7 kg
    Average air consumption 16.96 cfm 480 l/mn
    Average air consumption 8 l/s 16.96 cfm
    Average air consumption 480 l/mn 16.96 cfm
    Actual air consumption 33.92 cfm 960 l/mn
    Actual air consumption 16 l/s 33.92 cfm
    Actual air consumption 960 l/mn 33.92 cfm
    Free speed air consumption 13 cfm
    Free speed air consumption 6 l/s 13 cfm
    Air inlet thread size 3/8 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 74 db(A)
    Sound Power 85 db(A)
    Vibration ISO ISO-28927-12
    Vibration 3.1 m/s²
    Vibration uncertainty (K) 1.4 m/s²
    Free speed 12000 rpm
    Power 900 W 1.2 hp
    Power 1.2 hp 900 W
    Rear exhaust Rear exhaust
    Collet size 6.35 mm 1/4″
    Collet size 1/4″ 6.35 mm
