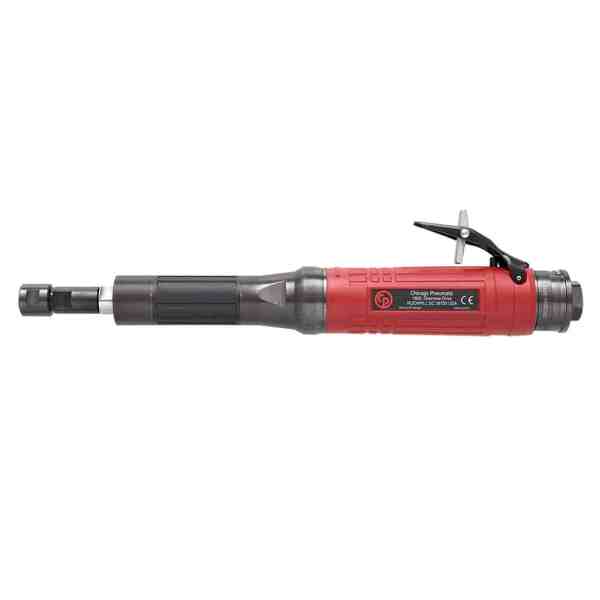

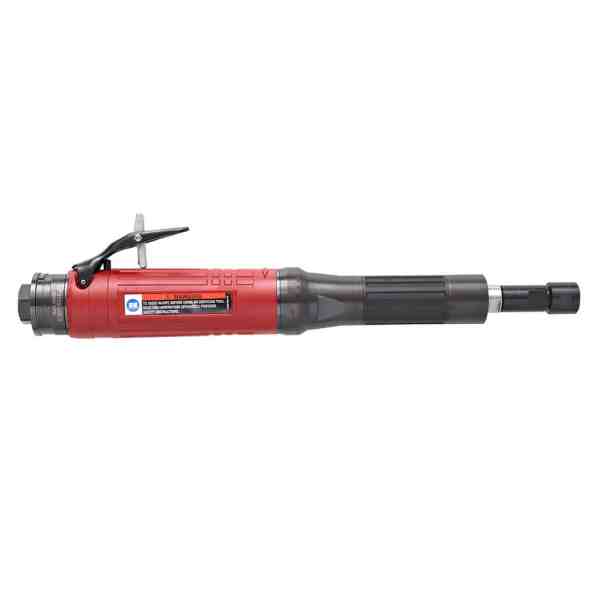

Chicago Pneumatic CP3119-15ES EXT. DIE GRINDER
Chicago Pneumatic CP3119-15ES EXT. DIE GRINDER
Chicago Pneumatic CP3119-15ES EXT. DIE GRINDER - Image 2
Chicago Pneumatic CP3119-15ES EXT. DIE GRINDER - Image 3

Chicago Pneumatic CP3119-15ES EXT. DIE GRINDER

Original price was: $1,612.88.Current price is: $1,112.89.

CP3119-15ES – High performance

SKU: 6151602120 Categories: , , Brand:

Description

CP3119-15ES

CP3119-15ES – High performance

Benefits

  • Industrial
  • High productivity
  • Highest durability in demanding applications up to 2000 hours maintenance intervals

    • Features

  • Steel housing
  • Insulating composite over-housing
  • Extended body with rubber grip
  • Streamlined safety lever
  • Rear exhaust
  • 1/4″ (6.35 mm) collet holder
  • Extended body with rubber grip
  • 1.2 hp (900 W) governed motor
  • 15,000 rpm free speed

    •
    Model CP3119-15ES
    Part number 6151602120
    Length 361 mm 14.2″
    Length 14.2″ 361 mm
    Net weight 1.4 kg 3.1 lb
    Net weight 3.1 lb 1.4 kg
    Average air consumption 18.02 cfm 480 l/mn
    Average air consumption 8 l/s 18.02 cfm
    Average air consumption 480 l/mn 18.02 cfm
    Actual air consumption 36.04 cfm 1020 l/mn
    Actual air consumption 17 l/s 36.04 cfm
    Actual air consumption 1020 l/mn 36.04 cfm
    Free speed air consumption 17 cfm
    Free speed air consumption 8 l/s 17 cfm
    Air inlet thread size 3/8 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 81 db(A)
    Sound Power 92 db(A)
    Vibration ISO ISO-28927-12
    Vibration <2.5 m/s²
    Free speed 15000 rpm
    Power 900 W 1.2 hp
    Power 1.2 hp 900 W
    Rear exhaust Rear exhaust
    Collet size 6.35 mm 1/4″
    Collet size 1/4″ 6.35 mm
