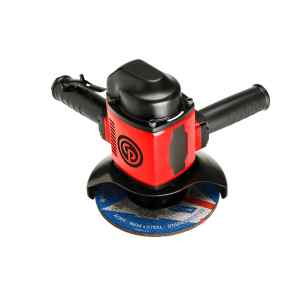

Chicago Pneumatic CP3340-SALAVAD 7" VERTICAL GRINDER
Chicago Pneumatic CP3340-SALAVAD 7" VERTICAL GRINDER
Chicago Pneumatic CP3340-SALAVAD 7" VERTICAL GRINDER - Image 2
Chicago Pneumatic CP3340-SALAVAD 7" VERTICAL GRINDER - Image 3
Chicago Pneumatic CP3340-SALAVAD 7" VERTICAL GRINDER - Image 4

Chicago Pneumatic CP3340-SALAVAD 7″ VERTICAL GRINDER

Original price was: $1,373.10.Current price is: $947.44.

CP3340-SALAVAD – Best in class productivity and optimal operator safety

SKU: 6151609280 Categories: , , Brand:

Description

CP3340-SALAVAD

CP3340-SALAVAD – Best in class productivity and optimal operator safety

Benefits

  • Industrial vertical wheel grinder
  • Avoids abrasive bursts in case of accidental air pressure variations
  • Maintains abrasive speed under operator load
  • Best in class productivity with up to 1,000 hour maintenance intervals

    • Features

  • Integrated Overspeed Shut-off device for improved safety
  • Streamlined safety lever
  • Robust aluminum housing
  • 7″ (180 mm) cup wheel capacity
  • 4.5 hp (3,400 W) high power governed motor
  • 8,500 rpm free speed
  • ANSI compliant for NA markets

    •
    Model CP3340-SALAVAD
    Part number 6151609280
    Power 3400 W 4.5 hp
    Power 4.5 hp 3400 W
    Length 250 mm 9.8″
    Length 9.8″ 250 mm
    Net weight 5.6 kg 12.3 lb
    Net weight 12.3 lb 5.6 kg
    Side to center 50 mm 2″
    Side to center 2″ 50 mm
    Actual air consumption 110 cfm
    Actual air consumption 52 l/s 110 cfm
    Free speed air consumption 61 cfm
    Free speed air consumption 29 l/s 61 cfm
    Air inlet thread size 1/2 “
    Min. hose size 16 mm 5/8″
    Min. hose size 5/8″ 16 mm
    Sound pressure 100 db(A)
    Sound Power 111 db(A)
    Vibration ISO ISO-28927-1
    Vibration 4.9 m/s²
    Vibration uncertainty (K) 1.7 m/s²
    Spindle thread 5/8-11
    Wheel size 180 mm 7″
    Wheel size 7″ 180 mm
    Free speed 8500 rpm
    Height over spindle 220 mm 8.6″
    Height over spindle 8.6″ 220 mm
    Side exhaust yes
