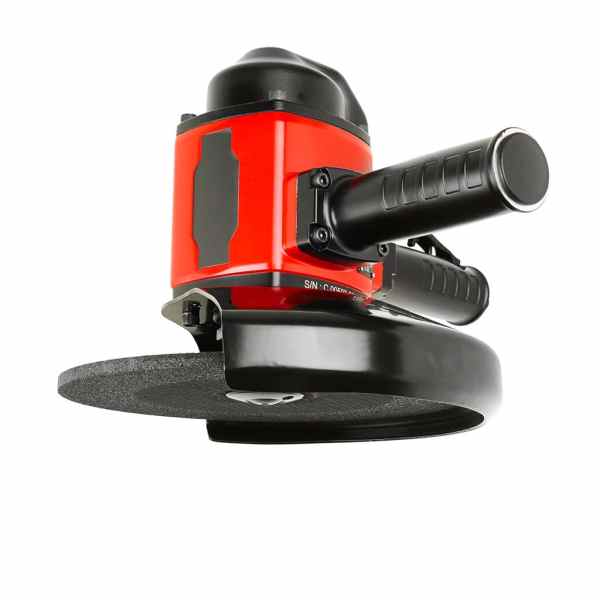

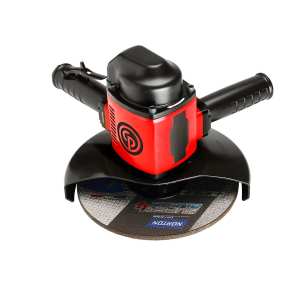

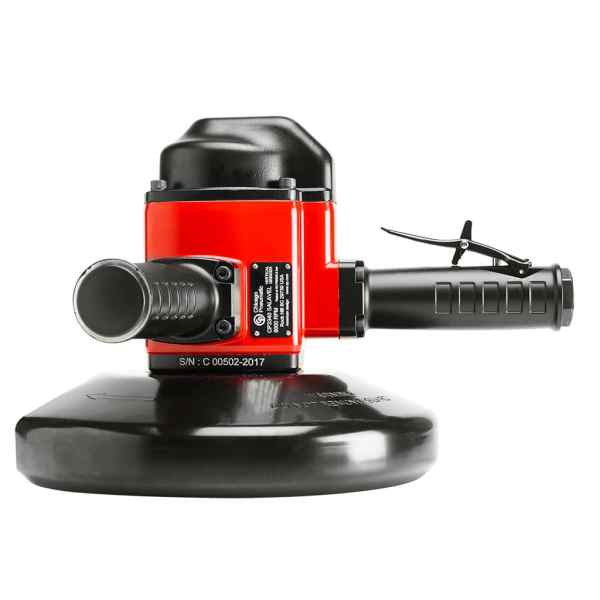

Chicago Pneumatic CP3340-SALAVEL 9" VERTICAL GRINDER
Chicago Pneumatic CP3340-SALAVEL 9" VERTICAL GRINDER
Chicago Pneumatic CP3340-SALAVEL 9" VERTICAL GRINDER - Image 2
Chicago Pneumatic CP3340-SALAVEL 9" VERTICAL GRINDER - Image 3
Chicago Pneumatic CP3340-SALAVEL 9" VERTICAL GRINDER - Image 4

Chicago Pneumatic CP3340-SALAVEL 9″ VERTICAL GRINDER

Original price was: $1,373.10.Current price is: $947.44.

CP3340-SALAVEL – Best in class productivity and optimal operator safety

SKU: 6151609290 Categories: , , Brand:

Description

CP3340-SALAVEL

CP3340-SALAVEL – Best in class productivity and optimal operator safety

Benefits

  • Industrial vertical wheel grinder
  • Avoids abrasive bursts in case of accidental air pressure variations
  • Maintains abrasive speed under operator load
  • Best in class productivity with up to 1,000 hour maintenance intervals

    • Features

  • Integrated Overspeed Shut-off device for improved safety
  • Streamlined safety lever
  • Robust aluminum housing
  • 9″ (230 mm) cup wheel capacity
  • 4.5 hp (3,400 W) high power governed motor
  • 6,000 rpm free speed
  • ANSI compliant for NA markets

    •
    Model CP3340-SALAVEL
    Part number 6151609290
    Power 3400 W 4.5 hp
    Power 4.5 hp 3400 W
    Length 250 mm 9.8″
    Length 9.8″ 250 mm
    Net weight 5.95 kg 13.1 lb
    Net weight 13.1 lb 5.95 kg
    Side to center 50 mm 2″
    Side to center 2″ 50 mm
    Actual air consumption 95 cfm
    Actual air consumption 45 l/s 95 cfm
    Free speed air consumption 34 cfm
    Free speed air consumption 16 l/s 34 cfm
    Air inlet thread size 1/2 “
    Min. hose size 16 mm 5/8″
    Min. hose size 5/8″ 16 mm
    Sound pressure 95 db(A)
    Sound Power 106 db(A)
    Vibration ISO ISO-28927-1
    Vibration < 2.5 m/s²
    Spindle thread 5/8-11
    Wheel size 230 mm 9″
    Wheel size 9″ 230 mm
    Free speed 6000 rpm
    Height over spindle 220 mm 8.6″
    Height over spindle 8.6″ 220 mm
    Side exhaust yes
