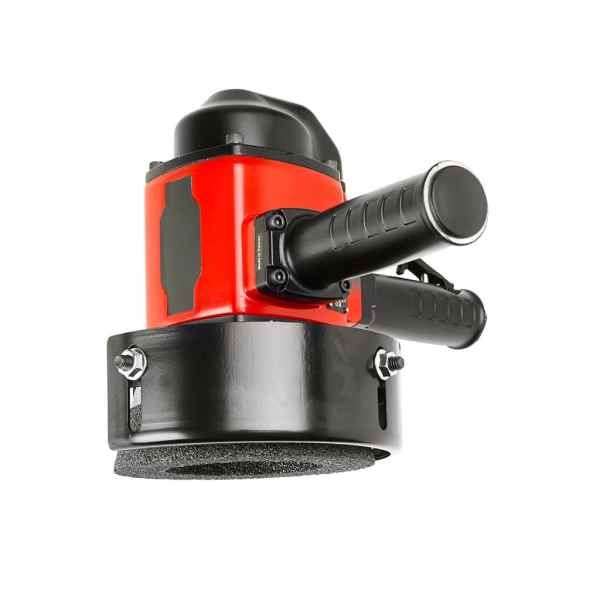

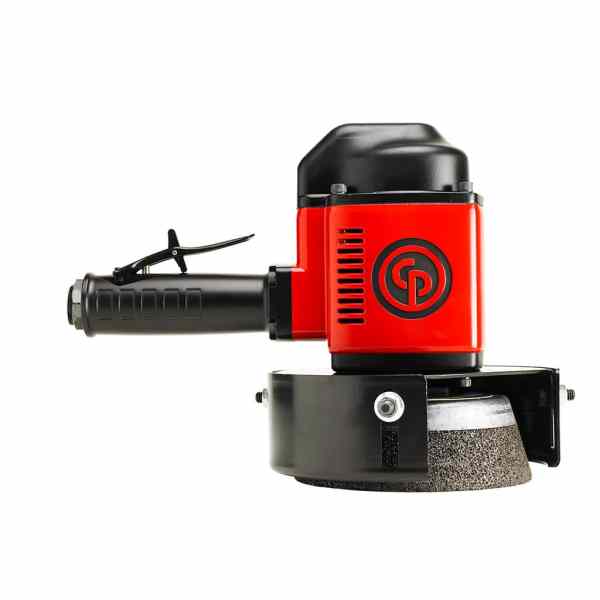

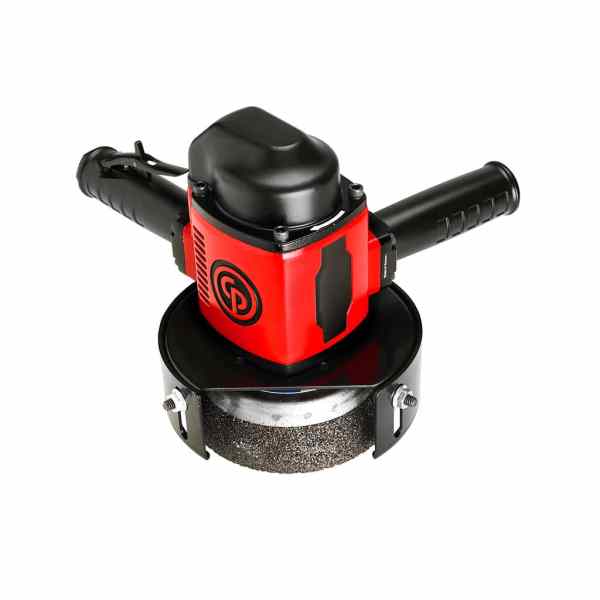

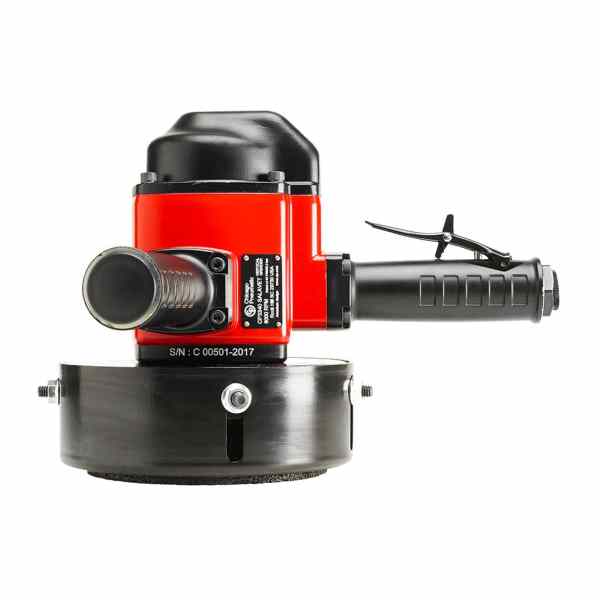

Chicago Pneumatic CP3340-SALAVET 6″ VERTICAL GRINDER

Original price was: $1,378.02.Current price is: $950.84.

CP3340-SALAVET – Best in class productivity and optimal operator safety

SKU: 6151609270 Categories: , , Brand:

Description

CP3340-SALAVET

CP3340-SALAVET – Best in class productivity and optimal operator safety

Benefits

  • Industrial vertical wheel grinder
  • Avoids abrasive bursts in case of accidental air pressure variations
  • Maintains abrasive speed under operator load
  • Best in class productivity with up to 1,000 hour maintenance intervals
  • Features

  • Integrated Overspeed Shut-off device for improved safety
  • Streamlined safety lever
  • Robust aluminum housing
  • 6″ (150 mm) cup wheel capacity
  • 4.5 hp (3,400 W) high power governed motor
  • 6,000 rpm free speed
  • ANSI compliant for NA markets
  • ISO 11184-7 compliant (for CE Markets)
  • Model CP3340-SALAVET
    Part number 6151609270
    Power 3400 W 4.5 hp
    Power 4.5 hp 3400 W
    Length 250 mm 9.8″
    Length 9.8″ 250 mm
    Net weight 5.5 kg 12.1 lb
    Net weight 12.1 lb 5 1/2 kg
    Side to center 50 mm 2″
    Side to center 2″ 50 mm
    Actual air consumption 95 cfm
    Actual air consumption 45 l/s 95 cfm
    Free speed air consumption 34 cfm
    Free speed air consumption 16 l/s 34 cfm
    Air inlet thread size 1/2 “
    Min. hose size 16 mm 5/8″
    Min. hose size 5/8″ 16 mm
    Sound pressure 95 db(A)
    Sound Power 106 db(A)
    Vibration ISO ISO-28927-1
    Vibration 3.6 m/s²
    Vibration uncertainty (K) 1.3 m/s²
    Spindle thread 5/8-11
    Wheel size 150 mm 6″
    Wheel size 6″ 150 mm
    Cup wheel Diam. 150 mm 6″
    Free speed 6000 rpm
    Cup wheel Diam. 6″ 150 mm
    Height over spindle 220 mm 8.6″
    Height over spindle 8.6″ 220 mm
    Side exhaust yes
