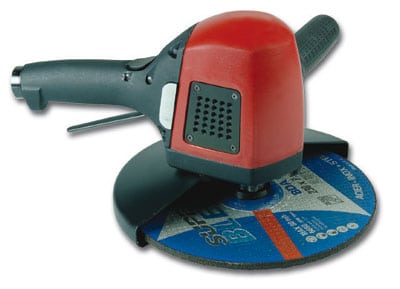

Chicago Pneumatic CP3349-SALAVEL VERTICAL GRINDER 9"
Chicago Pneumatic CP3349-SALAVEL VERTICAL GRINDER 9"

Chicago Pneumatic CP3349-SALAVEL VERTICAL GRINDER 9″

Original price was: $3,207.80.Current price is: $2,213.38.

CP3349-SALAVEL – Ultimate performance in heavy applications

SKU: 6151609070 Categories: , , Brand:

Description

CP3349-SALAVEL

CP3349-SALAVEL – Ultimate performance in heavy applications

Benefits

  • Industrial vertical wheel grinder
  • Highest durability in demanding applications with up to a 2,000 hour maintenance interval
  • Superior torque for maximal productivity

    • Features

  • Integrated overspeed device for improved safety
  • Built in oil tank for continuous lubrication
  • Double action safety lever
  • Robust housing
  • 9″ (230 mm) wheel capacity
  • 4 hp (3,000 W) high performance governed motor
  • 6,500 rpm free speed
  • ANSI compliant for NA markets

    •
    Model CP3349-SALAVEL
    Part number 6151609070
    Length 280 mm 11″
    Length 11″ 280 mm
    Net weight 4.4 kg 9.7 lb
    Net weight 9.7 lb 4.4 kg
    Side to center yes
    Actual air consumption 93 cfm
    Actual air consumption 44 l/s 93 cfm
    Free speed air consumption 27 cfm
    Free speed air consumption 13 l/s 27 cfm
    Air inlet thread size 1/2
    Min. hose size 15 mm 5/8″
    Min. hose size 5/8″ 15 mm
    Sound pressure 87 db(A)
    Sound Power 98 db(A)
    Vibration ISO ISO-28927-1
    Vibration 4 m/s²
    Vibration uncertainty (K) NA m/s²
    Spindle thread 5/8-11
    Wheel size 230 mm 9″”
    Wheel size 9″ 230
    Cup wheel Diam. 9″x1/4″x7/8″ / 230×6,4×22,2
    Free speed 6000 rpm
    Power 3000 W 4.0 hp
    Power 4.0 hp 3000 W
