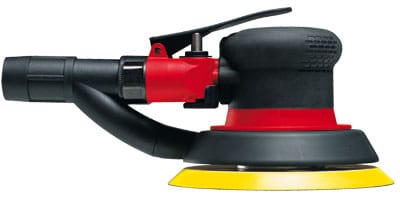

Chicago Pneumatic CP3512 5" R.O. SANDER 3/16" ORBIT SV
Chicago Pneumatic CP3512 5" R.O. SANDER 3/16" ORBIT SV

Chicago Pneumatic CP3512 5″ R.O. SANDER 3/16″ ORBIT SV, H&L

Original price was: $463.44.Current price is: $354.53.

CP3512 – Ergonomic & powerful

SKU: 6151933512 Categories: , , Brand:

Description

CP3512

CP3512 – Ergonomic & powerful

Benefits

  • Operator comfort with ergonomic palm shape
  • Productivity increased with low vibration level
  • Powerful and ergonomic palm shape for vertical and horizontal applications
  • 3/16″ (5 mm): great for surface preparation from body filler to paint primer

    • Features

  • Self Vacuum (SV) model in Hook & Loop pad
  • 5″ (125 mm) random orbital palm sander
  • 3/16″ (5 mm) orbit
  • Powerful 0.3 hp (210 W) motor
  • Soft grip, tear drop design for perfect control
  • Low noise level
  • Shut-off and speed control switch

    •
    Model CP3512
    Part number 6151933512
    Length 211 mm 8.3″
    Length 8.3″ 211 mm
    Net weight 0.78 kg 1.38 lb
    Net weight 1.38 lb 0.78 kg
    Height 105 mm 4.1″
    Height 4.1″ 105 mm
    Width 150 mm 6″
    Width 6″ 150 mm
    Average air consumption 8 cfm 227 l/mn
    Average air consumption 3.8 l/s 8 cfm
    Average air consumption 227 l/mn 8 cfm
    Actual air consumption 16 cfm 453 l/mn
    Actual air consumption 7.6 l/s 16 cfm
    Actual air consumption 453 l/mn 16 cfm
    Free speed air consumption 19.5 cfm
    Free speed air consumption 9.2 l/s 19.5 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 81 db(A)
    Sound Power 90.8 db(A)
    Vibration ISO ISO-28927-3
    Vibration 3 m/s²
    Vibration uncertainty (K) 1.3 m/s²
    Pad diameter 125 mm 5″
    Pad diameter 5″ 125 mm
    Pad type Hook & Loop yes
    Pad type PSA no
    Paper size 125 mm 5″
    Paper size 5″ 125 mm
    Orbit diameter 5 mm 3/16″
    Orbit diameter 3/16″ 5 mm
    Free speed 12000 rpm
    Power 210 W 0.3 hp
    Power 0.3 hp 210 W
    Self vacuum Self vacuum
    Vacuum Self vacuum
    Pad holes number 6
    Height over spindle 105 mm 4.1″
    Height over spindle 4.1″ 105 mm
    Spindle thread 5/16-24
