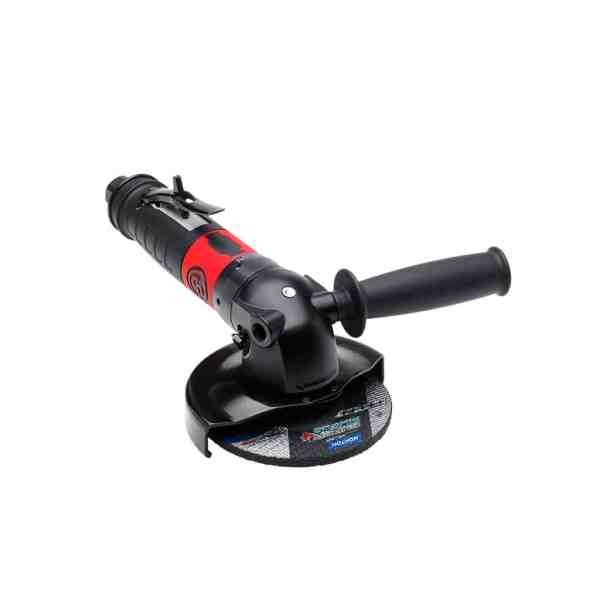

Chicago Pneumatic CP3550-120AB5 ANGLE GRINDER
Chicago Pneumatic CP3550-120AB5 ANGLE GRINDER
Chicago Pneumatic CP3550-120AB5 ANGLE GRINDER - Image 2

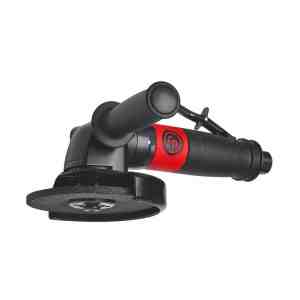

Chicago Pneumatic CP3550-120AB5 ANGLE GRINDER - Image 3
Chicago Pneumatic CP3550-120AB5 ANGLE GRINDER - Image 4
Chicago Pneumatic CP3550-120AB5 ANGLE GRINDER - Image 5

Chicago Pneumatic CP3550-120AB5 ANGLE GRINDER

Original price was: $992.51.Current price is: $684.84.

CP3550-120AB5 – Easy to handle & Industrial tough

SKU: 6151607790 Categories: , , Brand:

Description

CP3550-120AB5

CP3550-120AB5 – Easy to handle & Industrial tough

Benefits

  • Industrial angle wheel grinder
  • Industrial grade durability with up to a 1,000 hour maintenance interval
  • Superior torque for maximal productivity
  • Superior ergonomics

    • Features

  • 1.5 hp (1,100 W) governed motor
  • Durable bevel gear
  • Spindle lock button
  • Keyless rotative guard
  • 5″ (125 mm) wheel capacity
  • 5/8-11 spindle thread
  • 12,000 rpm free speed
  • Streamlined safety leve

    •
    Model CP3550-120AB5
    Part number 6151607790
    Power 1100 W 1 1/2 hp
    Power 1 1/2 hp 1100 W
    Length 252 mm 9.9″
    Length 9.9″ 252 mm
    Net weight 1.9 kg 4.2 lb
    Net weight 4.2 lb 1.9 kg
    Height 99 mm 3.9″
    Height 3.9″ 99 mm
    Side to center 29 mm 1.1″
    Side to center 1.1″ 29 mm
    Actual air consumption 56 cfm
    Actual air consumption 26 l/s 56 cfm
    Free speed air consumption 36 cfm
    Free speed air consumption 17 l/s 36 cfm
    Air inlet thread size 3/8 “
    Min. hose size 13 mm 1/2″
    Min. hose size 1/2″ 13 mm
    Sound pressure 84 db(A)
    Sound Power 95 db(A)
    European Sound standard ISO-15744
    Vibration ISO ISO-28927-1
    Vibration 9.8 m/s²
    Vibration uncertainty (K) 4.4 m/s²
    Spindle thread 5/8″-11 UNC
    Wheel size 125 mm 5″
    Wheel size 5″ 125 mm
    Free speed 12000 rpm
    Height over spindle 99 mm 3.9″
    Height over spindle 3.9″ 99 mm
    Rear exhaust Rear exhaust
    Cup wheel Diam. –  –
    Cup wheel Diam. – –
    Collet / spindle size –
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-7:2012
    Air inlet thread type NPT
