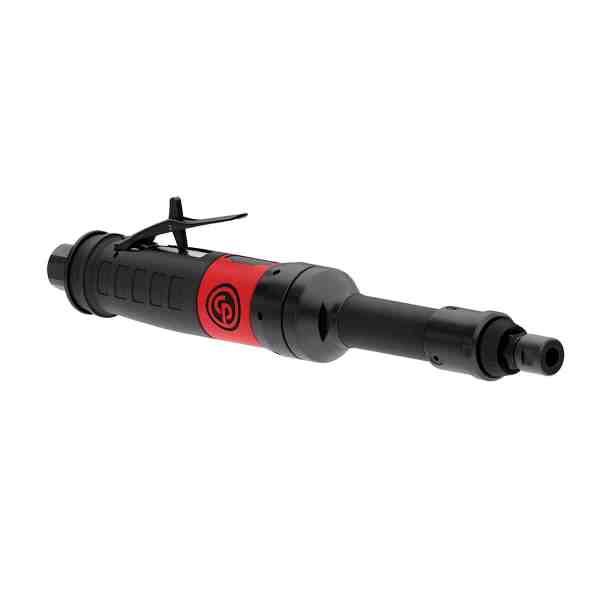

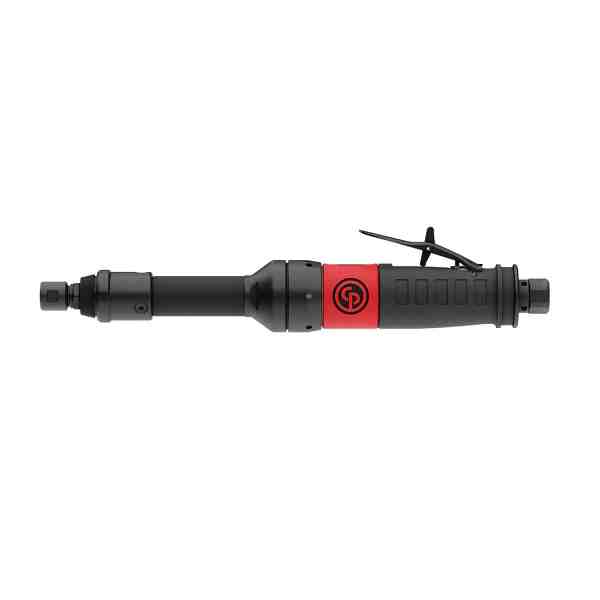

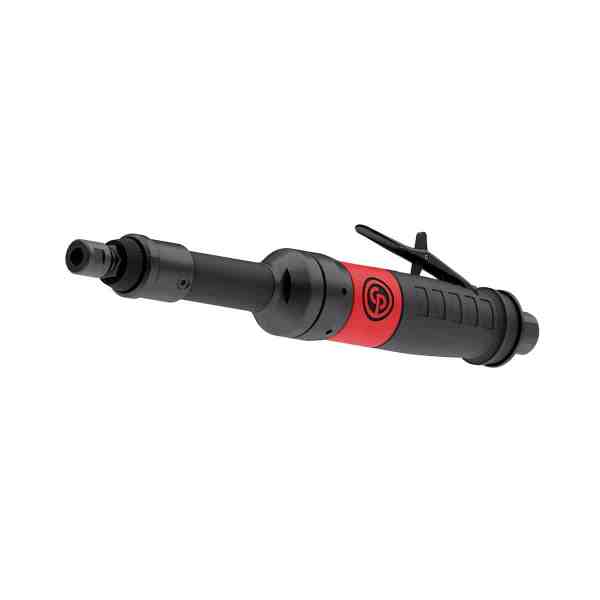

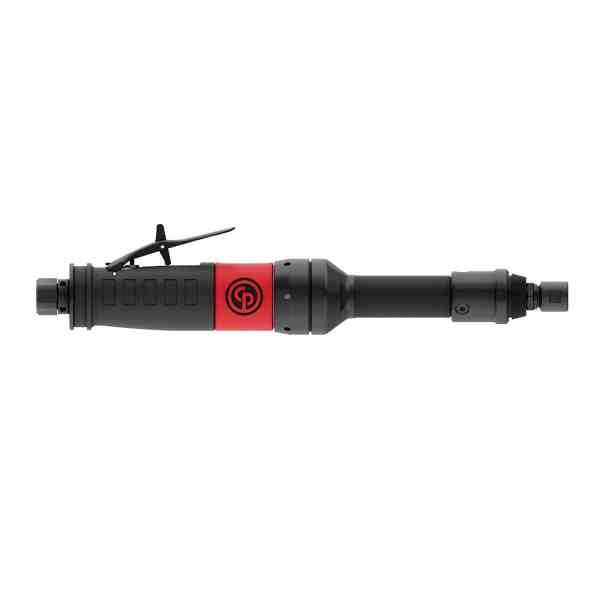

Chicago Pneumatic CP3550-180ES DIE GRINDER
Chicago Pneumatic CP3550-180ES DIE GRINDER
Chicago Pneumatic CP3550-180ES DIE GRINDER - Image 2
Chicago Pneumatic CP3550-180ES DIE GRINDER - Image 3
Chicago Pneumatic CP3550-180ES DIE GRINDER - Image 4
Chicago Pneumatic CP3550-180ES DIE GRINDER - Image 5
Chicago Pneumatic CP3550-180ES DIE GRINDER - Image 6

Chicago Pneumatic CP3550-180ES DIE GRINDER

Original price was: $1,026.12.Current price is: $708.02.

CP3550-180ES – Power and productivity

SKU: 6151602360 Categories: , , Brand:

Description

CP3550-180ES

CP3550-180ES – Power and productivity

Benefits

  • Top productivity thanks to high power and great comfort
  • Innovative design – new mechanism to lock collet holder for easy change of mounted point or carbide burr
  • Excellent durability

    • Features

  • Industrial die grinder, 18000 rpm, extended version
  • Can be used with Erickson 200 collets from 1/8″ (3.2mm) up to 3/8″ (9.5 mm)
  • Delivered with a Erickson 200 collet for 1/4″ and 6 mm mounted points or carbide burrs

    •
    Model CP3550-180ES
    Part number 6151602360
    Length 365 mm 14.4″
    Length 14.4″ 365 mm
    Net weight 1.4 kg 3.1 lb
    Net weight 3.1 lb 1.4 kg
    Height 52 mm 2.0″
    Height 2.0″ 52 mm
    Side to center 26 mm 1.0″
    Side to center 1.0″ 26 mm
    Actual air consumption 56 cfm
    Actual air consumption 26 l/s 56 cfm
    Free speed air consumption 36 cfm
    Free speed air consumption 17 l/s 36 cfm
    Air inlet thread size 3/8 “
    Min. hose size 13 mm 1/2″
    Min. hose size 1/2″ 13 mm
    Sound pressure 81 db(A)
    Sound Power 92 db(A)
    European Sound standard ISO-15744
    Vibration ISO ISO-28927-12
    Vibration <2.5 m/s²
    Free speed 18000 rpm
    Power 1050 W 1.4 hp
    Power 1.4 hp 1050 W
    Rear exhaust Rear exhaust
    Collet size 6.35 mm 1/4″
    Collet size 1/4″ 6.35 mm
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-9:2012
    Air inlet thread type NPT
