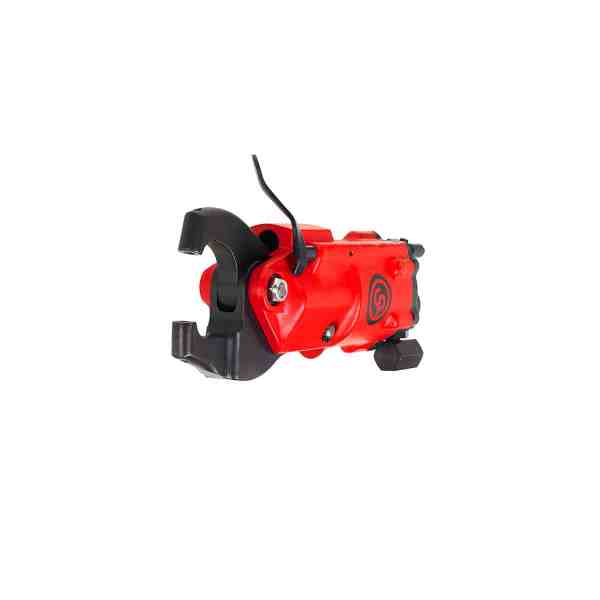

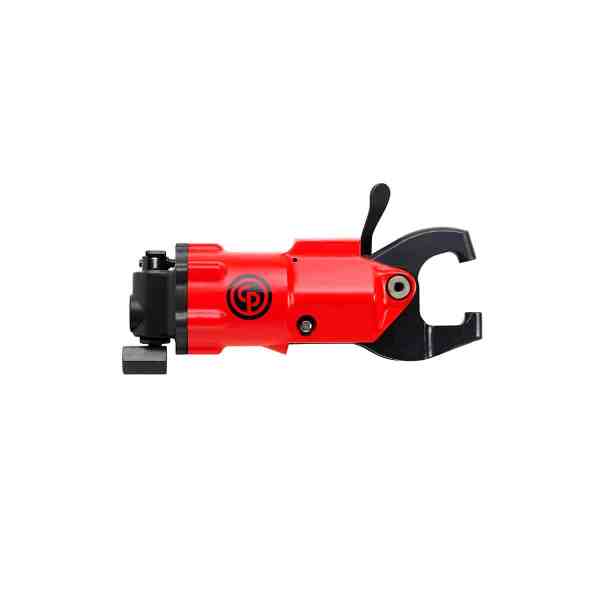

Chicago Pneumatic CP4210AS SQUEEZER
Chicago Pneumatic CP4210AS SQUEEZER
Chicago Pneumatic CP4210AS SQUEEZER - Image 2
Chicago Pneumatic CP4210AS SQUEEZER - Image 3
Chicago Pneumatic CP4210AS SQUEEZER - Image 4

Chicago Pneumatic CP4210AS SQUEEZER

Original price was: $2,278.98.Current price is: $1,572.50.

CP4210AS – The ergonomic and safe way to do riveting

SKU: 6151710200 Categories: , Brand:

Description

CP4210AS

CP4210AS – The ergonomic and safe way to do riveting

Benefits

  • Smooth operation and almost vibrationless
  • Perfectly adapted for metal structure repair
  • Powerful and robust

    • Features

  • Rivet squeezer with short alligator jaw
  • 1,5 inches (38 mm) reach from edge
  • Swivel inlet for maximum comfort and accessibility

    •
    Model CP4210AS
    Part number 6151710200
    Length 233 mm 9.2″
    Length 9.2″ 233 mm
    Net weight 1.7 kg 3.75 lb
    Net weight 3.75 lb 1.7 kg
    Height 92 mm 3.6″
    Height 3.6″ 92 mm
    Air inlet thread size 1/4 “
    Min. hose size 9.5 mm 3/8″
    Min. hose size 3/8″ 9.5 mm
    Sound pressure 76 db(A)
    Sound Power 87 db(A)
    European Sound standard EN ISO 15744
    Sound uncertainty 3 db(A)
    Vibration ISO EN ISO 20643
    Vibration <2.5 m/s²
    Vibration uncertainty (K) 2.7 m/s²
    Capacity aluminum 1/8″ 3.17 mm
    Capacity aluminum 3.17 mm 1/8″
    Capacity steel 3/32″ 2.36 mm
    Capacity steel 2.36 mm 3/32″
    Std yoke dimensions reach 1 1/2″ 38.1 mm
    Std yoke dimensions reach 38.1 mm 1 1/2″
    Max force (90 psi/ 6.2bar) 3000 lb
    Max force (90 psi/ 6.2bar) 13.34 kN
    Moving plunger max. travel 0.62″ 15.9 mm
    Moving plunger max. travel 15.9 mm 0.62″
    Moving plunger final part of stroke at max. force 0.05″ 1.3 mm
    Moving plunger final part of stroke at max. force 1.3 mm 0.05″
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-10 : 2011
    Air inlet thread type NPT
