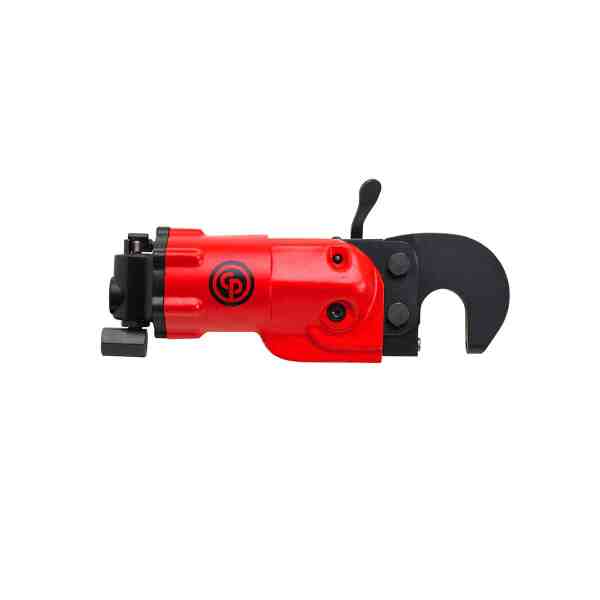

Chicago Pneumatic CP4210CS SQUEEZER
Chicago Pneumatic CP4210CS SQUEEZER

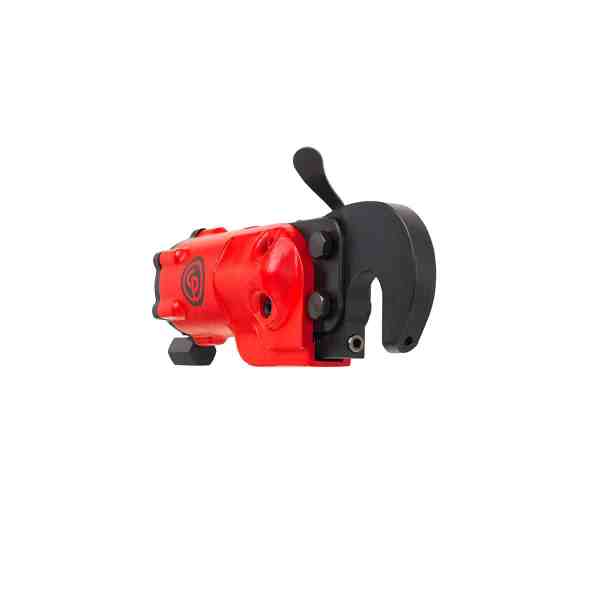

Chicago Pneumatic CP4210CS SQUEEZER - Image 2

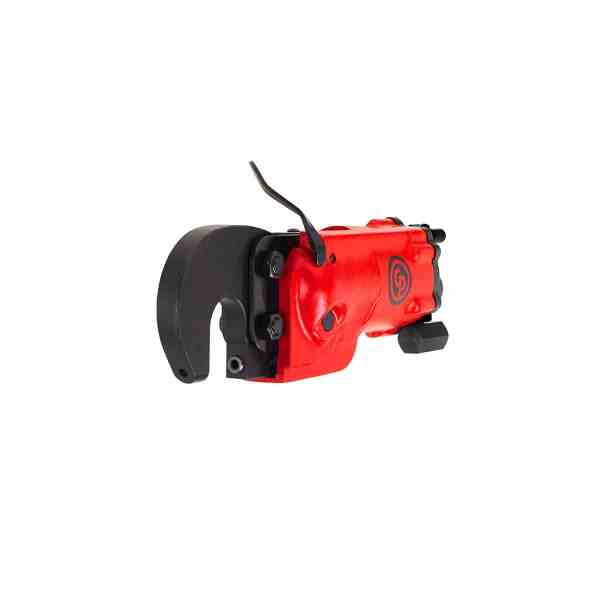

Chicago Pneumatic CP4210CS SQUEEZER - Image 3
Chicago Pneumatic CP4210CS SQUEEZER - Image 4

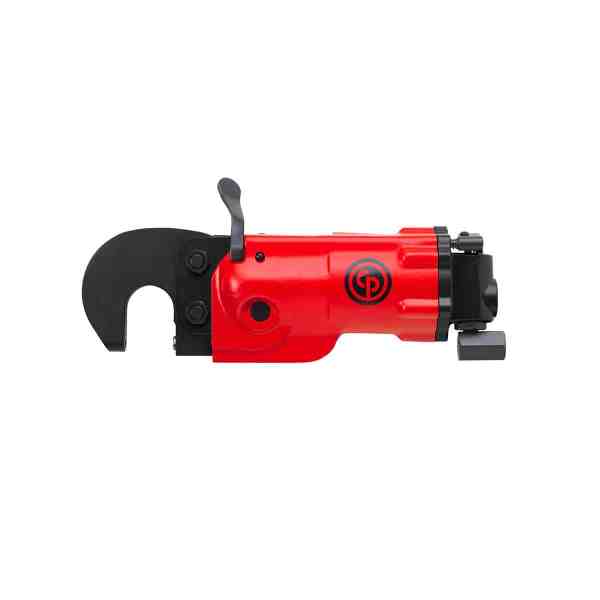

Chicago Pneumatic CP4210CS SQUEEZER - Image 5
Chicago Pneumatic CP4210CS SQUEEZER - Image 6

Chicago Pneumatic CP4210CS SQUEEZER

Original price was: $2,286.27.Current price is: $1,577.53.

CP4210CS – The ergonomic and safe way to do riveting

SKU: 6151710180 Categories: , Brand:

Description

CP4210CS

CP4210CS – The ergonomic and safe way to do riveting

Benefits

  • Smooth operation and almost vibrationless
  • Perfectly adapted for metal structure repair
  • Powerful and robust

    • Features

  • Rivet squeezer with short c-jaw
  • 1,5 inches (38 mm) reach from edge
  • Swivel inlet for maximum comfort and accessibility

    •
    Model CP4210CS
    Part number 6151710180
    Length 262 mm 10.3″
    Length 10.3″ 262 mm
    Net weight 2.04 kg 4.5 lb
    Net weight 4.5 lb 2.04 kg
    Height 84 mm 3.3″
    Height 3.3″ 84 mm
    Air inlet thread size 1/4 “
    Min. hose size 9.5 mm 3/8″
    Min. hose size 3/8″ 9.5 mm
    Sound pressure 76 db(A)
    Sound Power 87 db(A)
    European Sound standard EN ISO 15744
    Sound uncertainty 3 db(A)
    Vibration ISO EN ISO 20643
    Vibration <2.5 m/s²
    Vibration uncertainty (K) 2.3 m/s²
    Capacity aluminum 1/8″ 3.17 mm
    Capacity aluminum 3.17 mm 1/8″
    Capacity steel 3/32″ 2.36 mm
    Capacity steel 2.36 mm 3/32″
    Std yoke dimensions reach 1 1/2″ 38.1 mm
    Std yoke dimensions reach 38.1 mm 1 1/2″
    Std yoke dimensions closed height 1 1/4″ 32 mm
    Std yoke dimensions closed height 32 mm 1 1/4″
    Max force (90 psi/ 6.2bar) 3000 lb
    Max force (90 psi/ 6.2bar) 13.34 kN
    Moving plunger max. travel 0.56″ 14.27 mm
    Moving plunger max. travel 14.27 mm 0.56″
    Moving plunger final part of stroke at max. force 0.05″ 1.3 mm
    Moving plunger final part of stroke at max. force 1.3 mm 0.05″
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-10 : 2011
    Air inlet thread type NPT
