-31%

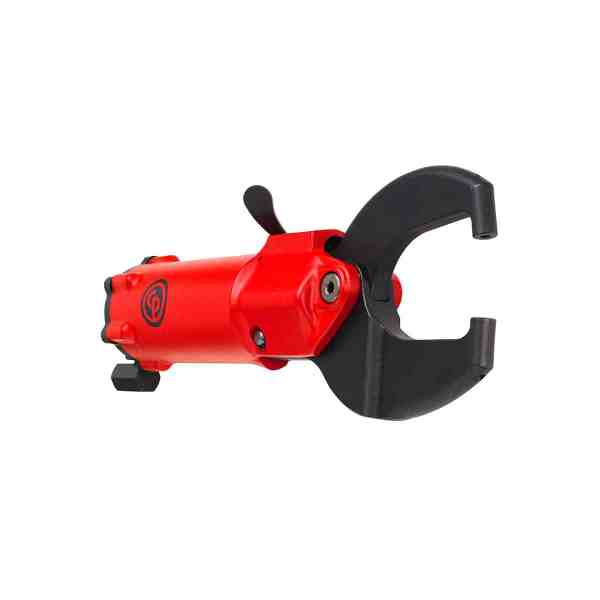

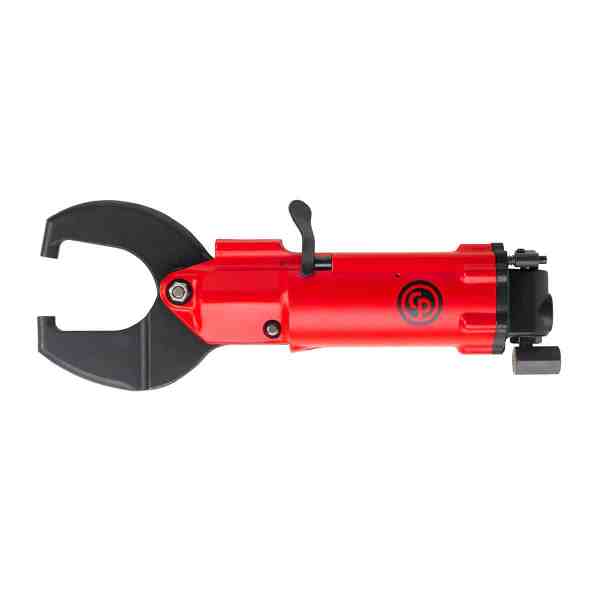

Chicago Pneumatic CP4220AL SQUEEZER
$2,884.54 Original price was: $2,884.54.$1,990.34Current price is: $1,990.34.
CP4220AL – The ergonomic and safe way to do riveting
- Description
- Additional information
Description
CP4220AL
CP4220AL – The ergonomic and safe way to do riveting
Benefits
Features
| Model | CP4220AL | |
| Part number | 6151710230 | |
| Length | 343 mm | 13.5″ |
| Length | 13.5″ | 343 mm |
| Net weight | 2.5 kg | 5 1/2 lb |
| Net weight | 5 1/2 lb | 2 1/2 kg |
| Height | 134 mm | 5.3″ |
| Height | 5.3″ | 134 mm |
| Air inlet thread size | 1/4 “ | |
| Min. hose size | 9.5 mm | 3/8″ |
| Min. hose size | 3/8″ | 9.5 mm |
| Sound pressure | 72 db(A) | |
| Sound Power | 83 db(A) | |
| European Sound standard | EN ISO 15744 | |
| Sound uncertainty | 3 db(A) | |
| Vibration ISO | EN ISO 20643 | |
| Vibration | <2.5 m/s² | |
| Vibration uncertainty (K) | 1.6 m/s² | |
| Capacity aluminum | 1/8″ | 3.17 mm |
| Capacity aluminum | 3.17 mm | 1/8″ |
| Capacity steel | 3/32″ | 2.36 mm |
| Capacity steel | 2.36 mm | 3/32″ |
| Std yoke dimensions reach | 3″ | 76.2 mm |
| Std yoke dimensions reach | 76.2 mm | 3″ |
| Max force (90 psi/ 6.2bar) | 4100 lb | |
| Max force (90 psi/ 6.2bar) | 18.23 kN | |
| Moving plunger max. travel | 3/4″ | 19.5 mm |
| Moving plunger max. travel | 19.5 mm | 3/4″ |
| Moving plunger final part of stroke at max. force | 0.05″ | 1.3 mm |
| Moving plunger final part of stroke at max. force | 1.3 mm | 0.05″ |
| European Directives | 2006/42/EC (17/05/2006) | |
| European Standards | EN ISO 11148-10 : 2011 | |
| Air inlet thread type | NPT | |
Additional information
| Brand | |
|---|---|
| Model - Series |
