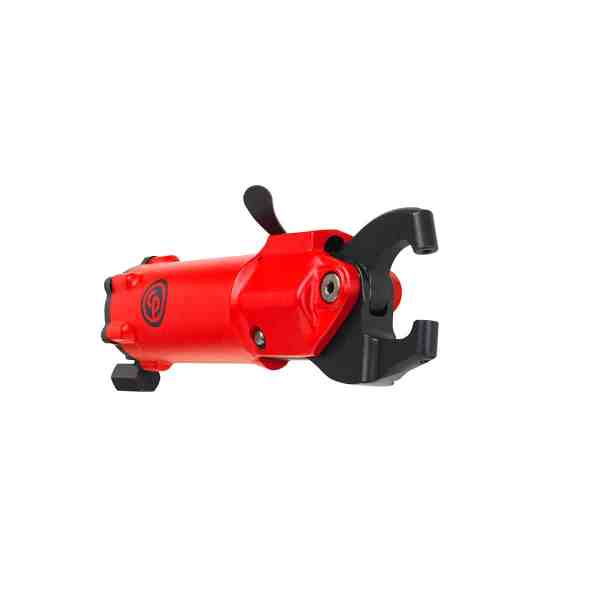

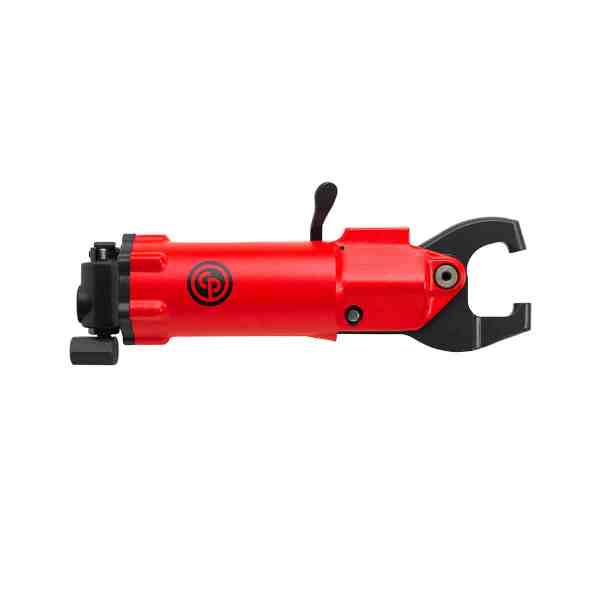

Chicago Pneumatic CP4220AS SQUEEZER
Chicago Pneumatic CP4220AS SQUEEZER

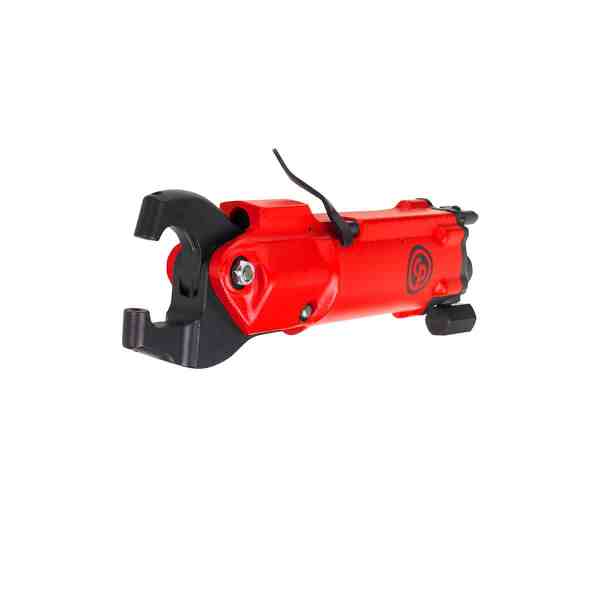

Chicago Pneumatic CP4220AS SQUEEZER - Image 2
Chicago Pneumatic CP4220AS SQUEEZER - Image 3

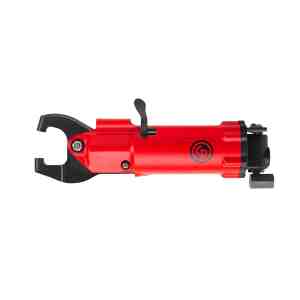

Chicago Pneumatic CP4220AS SQUEEZER - Image 4

Chicago Pneumatic CP4220AS SQUEEZER

Original price was: $2,578.50.Current price is: $1,779.17.

CP4220AS – The ergonomic and safe way to do riveting

SKU: 6151710210 Categories: , Brand:

Description

CP4220AS

CP4220AS – The ergonomic and safe way to do riveting

Benefits

  • Smooth operation and almost vibrationless
  • Perfectly adapted for metal structure repair
  • Powerful and robust

    • Features

  • Rivet squeezer with short alligator jaw
  • 1,5 inches (38 mm) reach from edge
  • Swivel inlet for maximum comfort and accessibility

    •
    Model CP4220AS
    Part number 6151710210
    Length 284 mm 11.2″
    Length 11.2″ 284 mm
    Net weight 2.2 kg 4.75 lb
    Net weight 4.75 lb 2.2 kg
    Height 92 mm 3.6″
    Height 3.6″ 92 mm
    Air inlet thread size 1/4 “
    Min. hose size 9.5 mm 3/8″
    Min. hose size 3/8″ 9.5 mm
    Sound pressure 72 db(A)
    Sound Power 83 db(A)
    European Sound standard EN ISO 15744
    Sound uncertainty 3 db(A)
    Vibration ISO EN ISO 20643
    Vibration <2.5 m/s²
    Vibration uncertainty (K) 1.6 m/s²
    Capacity aluminum 3/16″ 4.76 mm
    Capacity aluminum 4.76 mm 3/16″
    Capacity steel 0.15625″ 3.96 mm
    Capacity steel 3.96 mm 0.15625″
    Std yoke dimensions reach 1 1/2″ 38.1 mm
    Std yoke dimensions reach 38.1 mm 1 1/2″
    Max force (90 psi/ 6.2bar) 6000 lb
    Max force (90 psi/ 6.2bar) 26.68 kN
    Moving plunger max. travel 0.62″ 15.9 mm
    Moving plunger max. travel 15.9 mm 0.62″
    Moving plunger final part of stroke at max. force 0.05″ 1.3 mm
    Moving plunger final part of stroke at max. force 1.3 mm 0.05″
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-10 : 2011
    Air inlet thread type NPT
